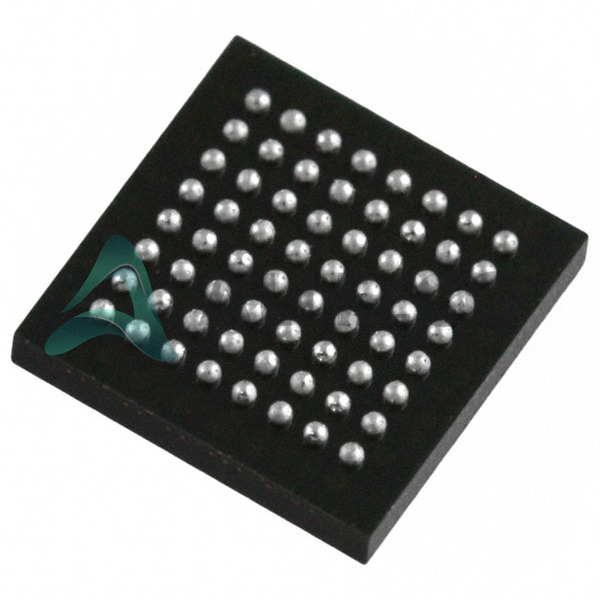

LC4064ZE-5UMN64I The Lattice Semiconductor LC4064ZE-5UMN64I is a 64-macrocell CPLD designed for ultra-low power applications. It features a 5.8ns propagation delay and operates from a 1.7V to 1.9V supply.
Mfr Part #:

LC4064ZE-5UMN64I

Available from 1 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LC4064ZE-5UMN64I is a 64-macrocell CPLD designed for ultra-low power applications. It features a 5.8ns propagation delay and operates from a 1.7V to 1.9V supply.
✓ Total Stock: 3,000 pcs

LC4064ZE-5UMN64I Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LC4064ZE-5UMN64I Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Tape & Reel
Voltage Supply
View Similar Products (0)

LC4064ZE-5UMN64I Description

Short technical summary and product information.

The Lattice Semiconductor LC4064ZE-5UMN64I is an In-System Programmable (ISP) Complex Programmable Logic Device (CPLD) from the ispMACH 4000ZE family. It offers 64 macrocells and a maximum operating frequency of 260MHz, with a propagation delay of 5.8ns.



Designed for power-sensitive consumer applications, this CPLD operates with a core voltage of 1.8V and a supply voltage range of 1.7V to 1.9V. It supports a wide range of I/O standards, including 1.8V, 2.5V, and 3.3V LVCMOS, and is 5V tolerant for LVCMOS 3.3, LVTTL, and PCI interfaces.



The device is housed in a 64-UCBGA (4x4) package and supports surface mount. It operates within an industrial temperature range of -40°C to 105°C (junction temperature).



Key features include flexible macrocells with individual control signals, multiple global clock pins, and excellent First-Time-Fit capabilities. It is also IEEE 1149.1 boundary scan testable and IEEE 1532 ISC compliant.

LC4064ZE-5UMN64I Quick Information

Product Type: CPLD
Canonical Name: Lattice Semiconductor Corporation LC4064ZE-5UMN64I CPLD
Subcategory: Complex Programmable Logic Device

LC4064ZE-5UMN64I Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LC4064ZE-5UMN64I Features

  • 64 macrocells for logic implementation.
  • 5.8ns maximum propagation delay.
  • 1.7V to 1.9V supply voltage range.
  • Industrial temperature operation (-40°C to 105°C).
  • 64-UCBGA surface mount package.

LC4064ZE-5UMN64I Applications

  • Ideal for low-power consumer electronics.
  • Suitable for embedded system designs.
  • Supports 3.3V, 2.5V, and 1.8V I/O.
  • Features in-system programmability.

LC4064ZE-5UMN64I FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the LC4064ZE-5UMN64I?

The maximum propagation delay (tPD) for the LC4064ZE-5UMN64I is 5.8 ns.

What is the operating supply voltage range for this CPLD?

The supply voltage range for the LC4064ZE-5UMN64I is 1.7V to 1.9V.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C (TJ).

How many macrocells does the LC4064ZE-5UMN64I have?

This CPLD features 64 macrocells.

What package type is the LC4064ZE-5UMN64I supplied in?

The LC4064ZE-5UMN64I is supplied in a 64-UCBGA (4x4) package.
