| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,986 pcs
|
18986 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
578 pcs
|
578 pcs | On Request | 1 | On Request | On Request | 1117 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |

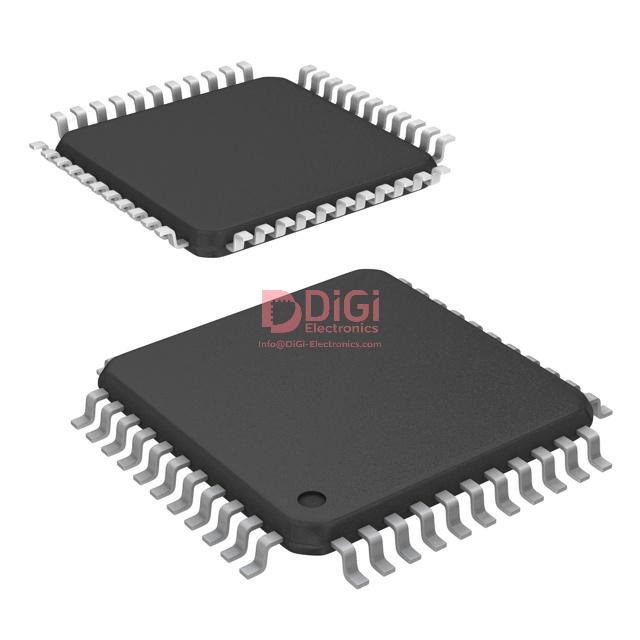

The Lattice Semiconductor LC4064V-10TN44I is a Complex Programmable Logic Device (CPLD) from the ispMACH 4000V series. This IC offers 64 macrocells and a maximum operating frequency of 400MHz, with a propagation delay of 10ns. It operates with a supply voltage range of 3V to 3.6V and is designed for surface mount applications.
The device supports in-system programmability and is suitable for a wide operating temperature range of -40°C to 105°C (TJ). It features 30 I/O pins and 4 logic elements, making it a versatile component for various embedded applications. The CPLD is packaged in a 44-TQFP (10x10) form factor.
This CPLD is designed for ease of integration into systems requiring programmable logic. Its features include enhanced macrocells with individual control signals and global OE controls, contributing to excellent first-time fit and refit capabilities. The 5V tolerant I/O supports multiple interface standards.
The maximum operating frequency is 400MHz.
The maximum propagation delay is 10 ns.
The device operates with a supply voltage between 3V and 3.6V.
The operating temperature range is -40°C to 105°C junction temperature.
The CPLD has 64 macrocells.
It is supplied in a 44-TQFP package.
