| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,980 pcs
|
3980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Mounting Type | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage Supply |

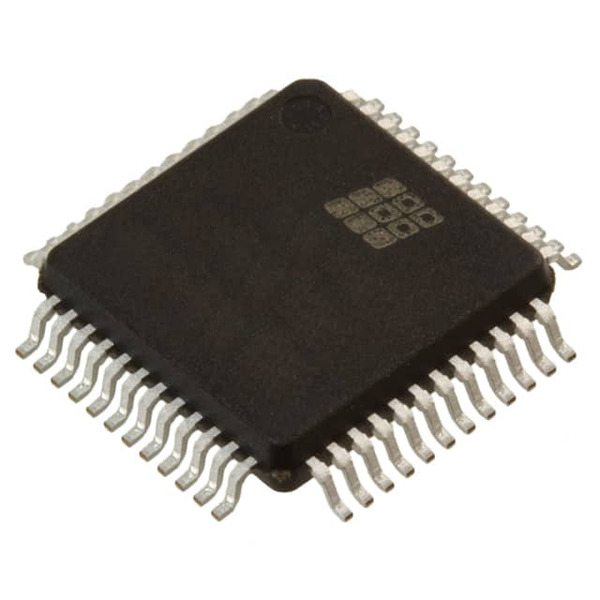

This Lattice Semiconductor LC4032V-75T44C is a Complex Programmable Logic Device (CPLD) from the ispMACH 4000V series. It offers 32 macrocells and a maximum propagation delay of 7.5ns, making it suitable for various embedded logic applications.
The device operates with a supply voltage between 3V and 3.6V and features 30 I/O pins. It is designed for In-System Programmability (ISP), allowing for design changes and field updates without removing the device from the circuit board.
Packaged in a 44-TQFP (10x10mm) format, the LC4032V-75T44C is designed for surface mounting. It operates within a junction temperature range of 0°C to 90°C. The CPLD provides 2 logic elements and is suitable for logic control and device configuration in embedded systems.
Key specifications include a 7.5ns propagation delay, 32 macrocells, and 30 I/O pins. The device supports a 3V to 3.6V operating voltage and is suitable for industrial environments with its specified operating temperature range.
The maximum propagation delay (tpd) for the LC4032V-75T44C is 7.5 ns.
The LC4032V-75T44C features 32 macrocells.
The LC4032V-75T44C operates within a voltage supply range of 3V to 3.6V.
The operating temperature range (TJ) for the LC4032V-75T44C is 0°C to 90°C.
The LC4032V-75T44C is supplied in a 44-TQFP package.
