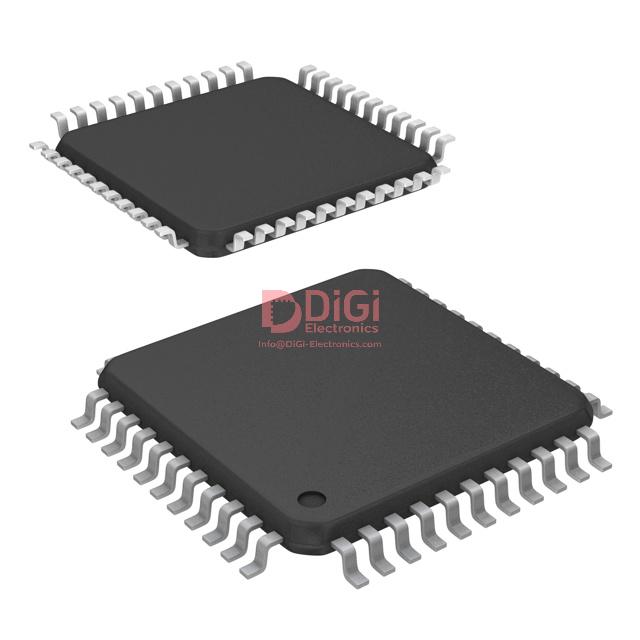

LC4032C-75TN44C The Lattice Semiconductor LC4032C-75TN44C is a CPLD IC featuring 32 macrocells and a 7.5ns maximum propagation delay. It operates with a supply voltage between 1.65V and 1.95V.
Mfr Part #:

LC4032C-75TN44C

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor LC4032C-75TN44C is a CPLD IC featuring 32 macrocells and a 7.5ns maximum propagation delay. It operates with a supply voltage between 1.65V and 1.95V.
✓ Total Stock: 8,196 pcs

LC4032C-75TN44C Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
196 pcs
On Request
196 pcs On Request 1 On Request On Request 0815+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LC4032C-75TN44C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of I
Number of Logic Elements
Number of Macrocells
Operating Temperature
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

LC4032C-75TN44C Description

Short technical summary and product information.

The Lattice Semiconductor LC4032C-75TN44C is a Complex Programmable Logic Device (CPLD) from the ispMACH® 4000C series. This device offers 32 macrocells and supports in-system programmability.



Key electrical specifications include a maximum propagation delay of 7.5 ns and an internal supply voltage range of 1.65V to 1.95V. The operating temperature range is from 0°C to 90°C junction temperature.



Designed for surface mounting, the LC4032C-75TN44C comes in a 44-TQFP package. It provides 30 I/O pins and 2 logic elements/blocks, making it suitable for various embedded applications requiring flexible logic implementation.



This CPLD is manufactured by Lattice Semiconductor Corporation and is part of their ispMACH family, known for high performance and ease of design.

LC4032C-75TN44C Quick Information

Product Type: CPLD
Series: 4000C
Canonical Name: LC4032C-75TN44C CPLD
Subcategory: Complex Programmable Logic Devices

LC4032C-75TN44C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LC4032C-75TN44C Features

  • 32 macrocells for logic implementation.
  • Maximum propagation delay of 7.5 ns.
  • Operates at 1.65V to 1.95V supply.
  • Surface mount 44-TQFP package.
  • In-system programmable functionality.

LC4032C-75TN44C Applications

  • Embedded system logic control.
  • Digital signal processing.
  • Interface bridging applications.
  • Custom logic circuit design.

LC4032C-75TN44C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum propagation delay for the LC4032C-75TN44C?

The maximum propagation delay for the LC4032C-75TN44C is 7.5 ns.

What is the operating supply voltage range for this CPLD?

The LC4032C-75TN44C operates with a supply voltage between 1.65V and 1.95V.

How many macrocells does the LC4032C-75TN44C have?

This CPLD features 32 macrocells.

What is the operating temperature range for the LC4032C-75TN44C?

The operating temperature range is 0°C to 90°C junction temperature.

What type of package is the LC4032C-75TN44C supplied in?

The LC4032C-75TN44C is supplied in a 44-TQFP package.

Is the LC4032C-75TN44C RoHS compliant?

Yes, the LC4032C-75TN44C is RoHS3 compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1.
