| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Dimensions | |
| Finish | |
| Material | |
| Prop 65 | |
| Temperature Range | |
| Type |

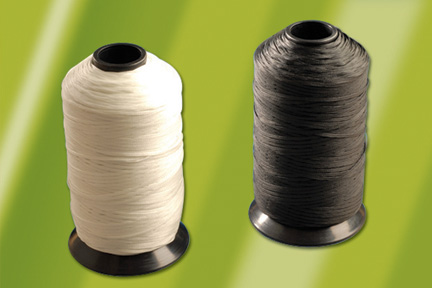

The Alpha Wire LC162 lacing tape offers an economical solution for easily bundling wires and cables. Constructed from high tenacity, continuous filament polyester, this tape is suitable for various applications.
Key specifications include a breaking strength of 50 Lbs. minimum and an elongation of 40% maximum. The tape operates within a temperature range of -73°C to 177°C. It is available in black and white colors and meets applicable specifications such as A-A-52081-B-3 and FED-STD-191.
The lacing tape comes in standard packaging of 500-yard spools, with a length tolerance of +10/-3%. The finish is Type II, Grade B, featuring a microcrystalline fungicide wax that is mercury and copper-free. Dimensions are 0.085 +/- 0.009" x 0.014 +/- 0.003".
This product is compliant with RoHS3, REACH, and California Proposition 65 requirements. It is also rated MSL 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Alpha Wire LC162 lacing tape is made of high tenacity, continuous filament polyester.
The minimum breaking strength of the LC162 lacing tape is 50 Lbs.
The operating temperature range for the LC162 lacing tape is -73°C to 177°C.
The dimensions of the LC162 lacing tape are 0.085 +/- 0.009" x 0.014 +/- 0.003".
The LC162 lacing tape is typically supplied on 500-yard spools in a King Bobbin.
The Alpha Wire LC162 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LC162 is 1 Unlimited.
