Mfr Part #:

LC03-3.3.TBT

Mfr Name: NIKO-SEM

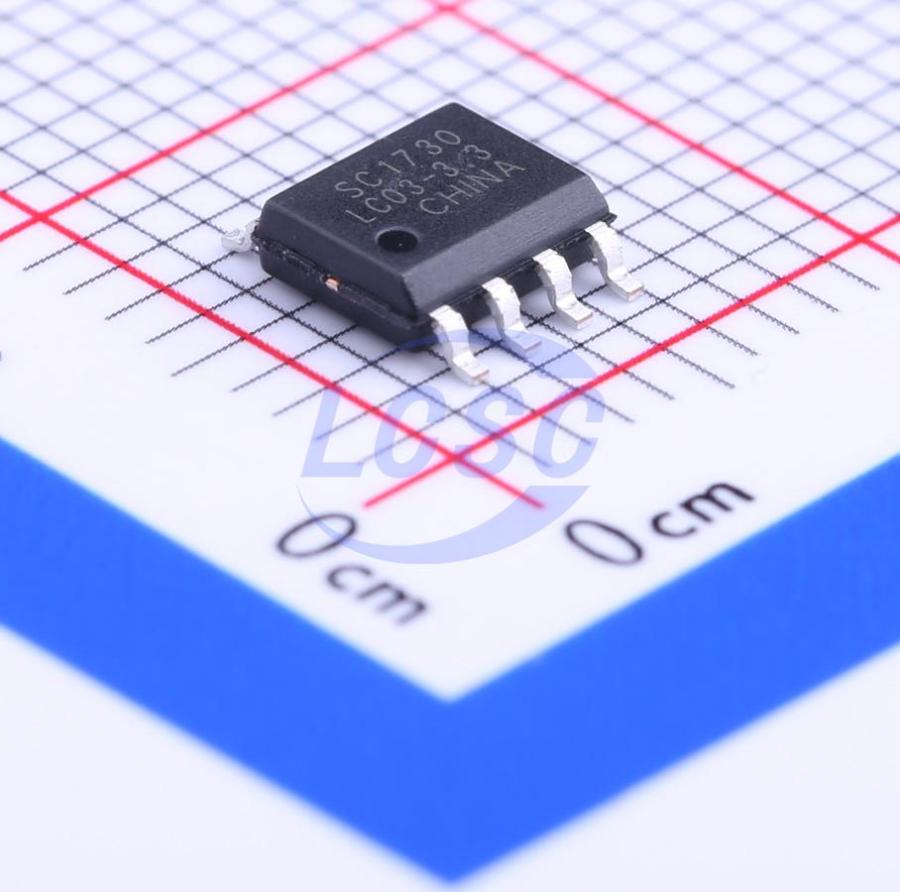

The Semtech LC03-3.3.TBT is a TVS Diode designed for high-speed interfaces. It features a 3.3V breakdown voltage and a 5A peak pulse current capability.

✓ Total Stock: 439 pcs

LC03-3.3.TBT Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	439 pcs On Request	439 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

LC03-3.3.TBT Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NIKO-SEM
Capacitance	15pF
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323

View Similar Products (0)

LC03-3.3.TBT Description

Short technical summary and product information.

The Semtech LC03-3.3.TBT is a low-capacitance Transient Voltage Suppressor (TVS) diode designed to protect sensitive high-speed interfaces from electrical overstress. With a working peak reverse voltage of 3.3V and a breakdown voltage of 3.3V at 1mA, this diode offers robust protection.

Key electrical characteristics include a maximum clamping voltage of 5.5V at 10A and a typical capacitance of 15pF at 0V, making it suitable for high-speed data lines where minimal signal distortion is crucial. The component is rated for a peak pulse current of 5A.

This TVS diode is supplied in a surface mount package, specifically the SC-70 or SOT-323, facilitating integration into compact electronic designs. The standard package quantity is 3000 units, and it is designed for surface mount applications.

Semtech's circuit protection products are engineered to safeguard sensitive circuitry against events like Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and Cable Discharge Events (CDE). The LC03-3.3.TBT is part of this portfolio, offering reliable protection for modern electronic systems.

LC03-3.3.TBT Quick Information

Product Type: TVS Diode

Series: LC03

Canonical Name: Semtech LC03-3.3.TBT TVS Diode

Subcategory: TVS Diodes

LC03-3.3.TBT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LC03-3.3.TBT Features

3.3V breakdown voltage for interface protection.
5A peak pulse current handling capability.
Low 15pF capacitance for high-speed signals.
Surface mount SC-70/SOT-323 package.
Protects against ESD and electrical transients.

LC03-3.3.TBT Applications

Protects high-speed data lines.
Ideal for USB and HDMI interfaces.
Used in portable electronic devices.
Suitable for telecommunications equipment.
Ensures signal integrity in sensitive circuits.

LC03-3.3.TBT FAQs

6 frequently asked questions generated from this part’s specifications.

What is the breakdown voltage of the LC03-3.3.TBT?

The breakdown voltage is 3.3V at 1mA.

What is the peak pulse current for the LC03-3.3.TBT?

The peak pulse current is 5A.

What is the capacitance of the LC03-3.3.TBT?

The capacitance is 15pF typical at 0V.

What is the clamping voltage of the LC03-3.3.TBT?

The maximum clamping voltage is 5.5V at 10A.

What package type is the LC03-3.3.TBT available in?

The LC03-3.3.TBT is available in SC-70 and SOT-323 packages.

How is the LC03-3.3.TBT mounted?

It is designed for surface mount installation.
