| Category | |
| Manufacturer Name | |
| Battery Chemistry | |
| Capacity | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Termination Style | |
| Voltage | |
| Width |

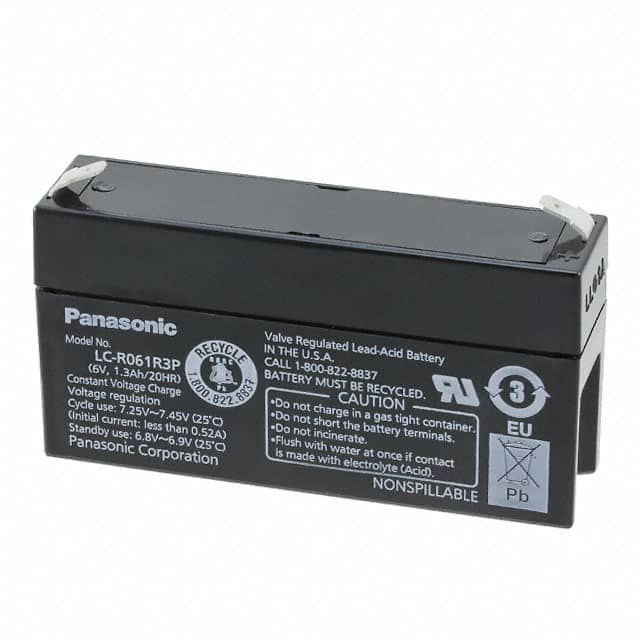

The Panasonic LC-R061R3P is a valve-regulated lead acid (VRLA) battery with a nominal voltage of 6V and a rated capacity of 1.3Ah at the 20-hour discharge rate. It is designed for both main and standby power supply applications. The battery features a sealed construction with a standard UL94HB black resin case and Faston 187 spade terminals. Dimensions are 98.0mm length, 25.0mm width, and 51.0mm height, with a mass of 0.30 kg. The internal resistance is approximately 50mΩ when fully charged at 25°C. For cycle use, the recommended charging voltage is 7.25V to 7.45V with a maximum initial current of 0.52A. For trickle use, the recommended charging voltage is 6.8V to 6.9V with a maximum initial current of 0.195A. The expected trickle life is 3-5 years at 25°C and approximately 5 years at 20°C. Self-discharge characteristics show 91% capacity retention after 3 months, 82% after 6 months, and 64% after 12 months at 25°C. Capacity is temperature-dependent, with 102% at 40°C, 100% at 25°C, 85% at 0°C, and 65% at -15°C relative to the 20-hour rate capacity at 25°C.
6V.
98.0mm x 25.0mm x 51.0mm with Faston 187 spade terminals.
1.3Ah at 20-hour rate, 1.2Ah at 10-hour, 1.05Ah at 5-hour, 0.85Ah at 1-hour.
Cycle use: 7.25V to 7.45V; Trickle use: 6.8V to 6.9V at 25°C.
Approximately 50mΩ when fully charged at 25°C.
3-5 years at 25°C, approximately 5 years at 20°C.
