| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,474 pcs
|
1474 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| SVHC Present | |
| Tape & Reel |

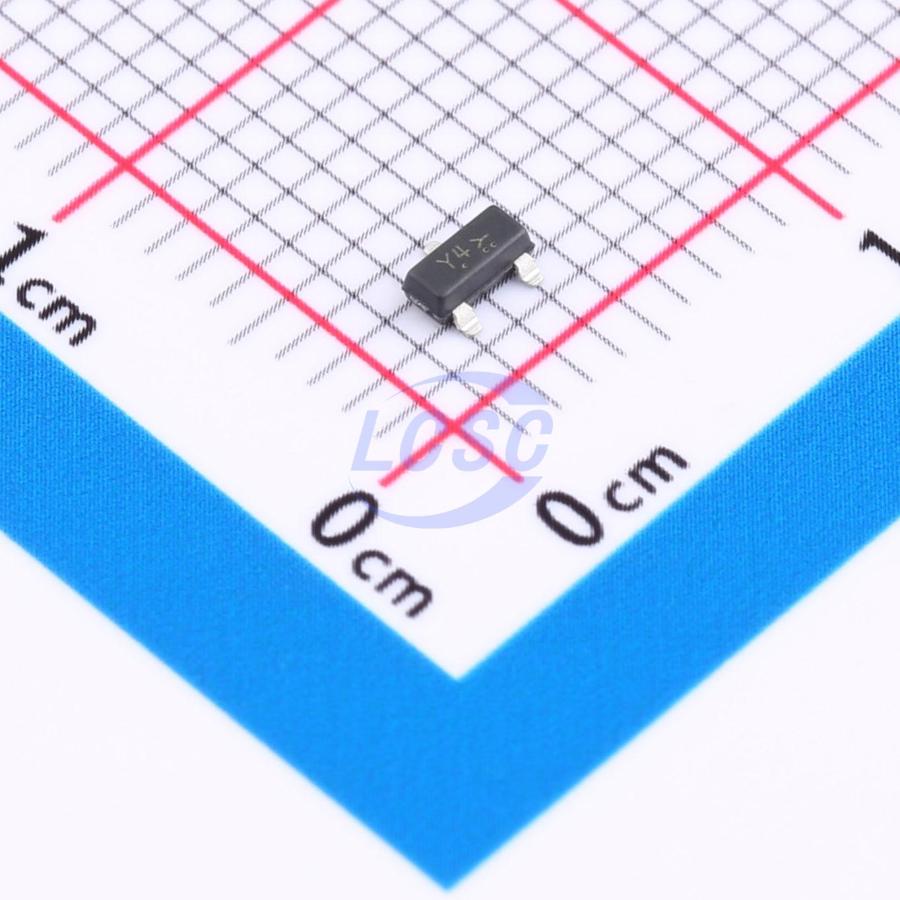

The LBZX84C15LT1G is a Zener Voltage Regulator Diode manufactured by LRC Leshan Radio Co Ltd. This component is designed for voltage regulation applications and operates with a nominal Zener voltage of 15V, offering a tolerance of 5%.
It can dissipate up to 225mW of power when mounted on an FR-5 board at 25°C, and up to 300mW when mounted on an alumina substrate at 25°C. The operating temperature range for both junction and storage is from -55°C to +125°C.
The diode is housed in a compact SOT-23-3 (TO-236AB) plastic package, suitable for surface mounting. The maximum case temperature for soldering purposes is 260°C for 10 seconds. This component is supplied in Tape & Reel packaging with a standard quantity of 3000 units.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. These compliance details are based on available database information and should be verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15V nominal at 5 mA.
±5%.
225 mW on FR-5 board, 300 mW on alumina substrate at 25°C.
-55°C to +125°C.
SOT-23-3.
260°C for 10 seconds.
RoHS3 Compliant.
