| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| RF Family | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

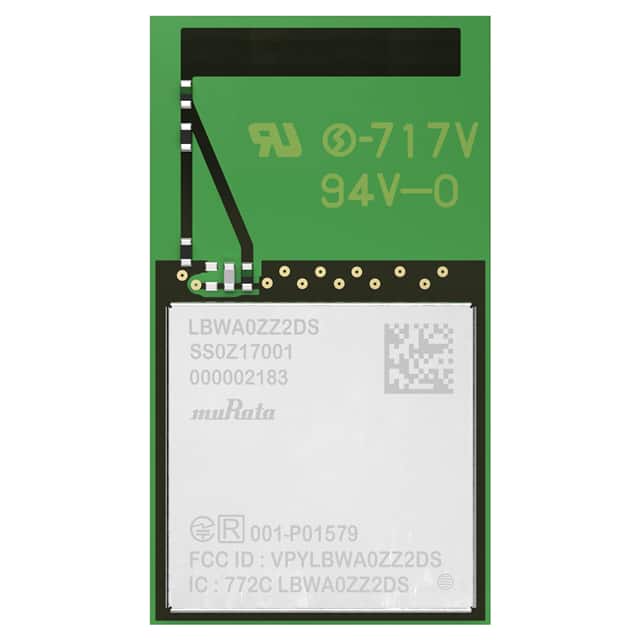

The Murata LBWA0ZZ2DS-688 is a shielded small WiFi module designed for 802.11b/g/n wireless communication.
This module operates in the 2.4GHz frequency band and supports modulation schemes including CCK, DSSS, and OFDM, achieving a data rate of up to 72.2Mbps. It features a PCB trace antenna and utilizes the NXP 88W8801 IC. The module supports serial interfaces such as SDIO and USB, and requires operating voltages of 1.8V or 3.3V.
Designed for surface mounting, the LBWA0ZZ2DS-688 comes in an 88-SMD Module package. It is rated for an operating temperature range of -40°C to 85°C. The module is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
This RF transceiver module is suitable for various wireless networking applications requiring reliable WiFi connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module operates at 1.8V or 3.3V.
The module is provided in an 88-SMD Module package.
The operating temperature range is -40°C to 85°C.
It supports 802.11b/g/n protocols.
