LBP-602VA2 The ROHM Semiconductor LBP-602VA2 is a 2-digit, 0.56-inch 7-segment LED display module in red. It operates with a typical forward voltage of 1.9V and offers a typical luminous intensity of 36mcd.
Mfr Part #:

LBP-602VA2

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor LBP-602VA2 is a 2-digit, 0.56-inch 7-segment LED display module in red. It operates with a typical forward voltage of 1.9V and offers a typical luminous intensity of 36mcd.
✓ Total Stock: 313 pcs
$ Price Range: $0.99

LBP-602VA2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
313 pcs
On Request
313 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LBP-602VA2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Common Pin
Current
Digit
Display Type
Lead Spacing
Millicandela Rating
Number of Characters
Power Dissipation (Max)
Reverse Current
Voltage
Wavelength
View Similar Products (0)

LBP-602VA2 Description

Short technical summary and product information.

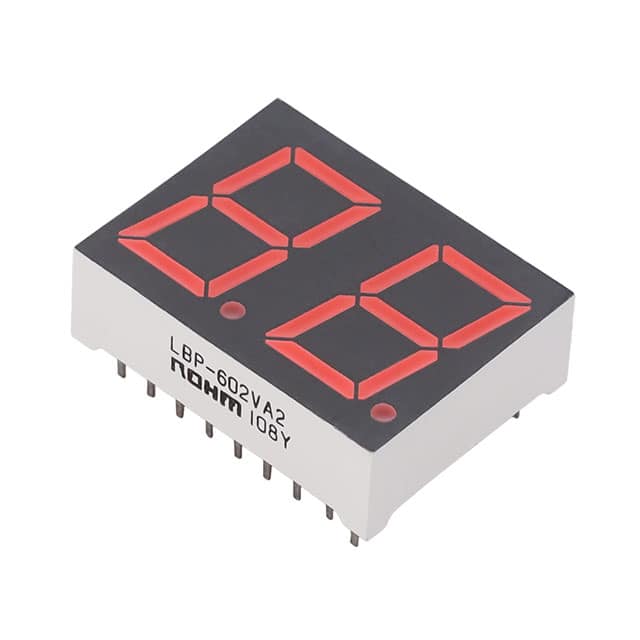

The ROHM Semiconductor LBP-602VA2 is a 2-digit LED character and numeric display module featuring a 0.56-inch character height. This red display utilizes 7-segment technology for clear numerical representation.



Key electrical characteristics include a typical forward voltage of 1.9V and a typical forward current of 10mA, resulting in a typical luminous intensity of 36mcd. The peak wavelength for the red emission is 650nm. The module has a maximum power dissipation of 896mW.



Packaged in an 18-DIP format, the LBP-602VA2 has dimensions of 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm). It is designed with a common anode configuration. This display is suitable for various applications requiring numerical indication.

LBP-602VA2 Quick Information

Product Type: LED Character and Numeric Display Module
Canonical Name: ROHM Semiconductor LBP-602VA2 2-Digit 7-Segment LED Display
Subcategory: LED Character and Numeric Display Module

LBP-602VA2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LBP-602VA2 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LBP-602VA2 Features

  • Two-digit, 0.56-inch 7-segment display.
  • Bright red LED emission.
  • Typical forward voltage of 1.9V.
  • Typical luminous intensity of 36mcd.
  • Common anode configuration.

LBP-602VA2 Applications

  • Ideal for numerical displays.
  • Suitable for instrument readouts.
  • Used in control panel indicators.
  • Applicable for status indication.

LBP-602VA2 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the display type and number of digits for the LBP-602VA2?

The LBP-602VA2 is a 2-digit, 7-segment LED display.

What is the typical forward voltage of the LBP-602VA2 display?

The typical forward voltage for the LBP-602VA2 is 1.9V at 10mA.

What is the typical luminous intensity of the LBP-602VA2?

The typical luminous intensity of the LBP-602VA2 is 36mcd at 10mA.

What is the color of the LBP-602VA2 LED display?

The LBP-602VA2 LED display is red.

What is the package type for the LBP-602VA2?

The LBP-602VA2 is supplied in an 18-DIP (0.600", 15.24mm) package.
