| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
671 pcs
|
671 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Protocol | |
| RF Family | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

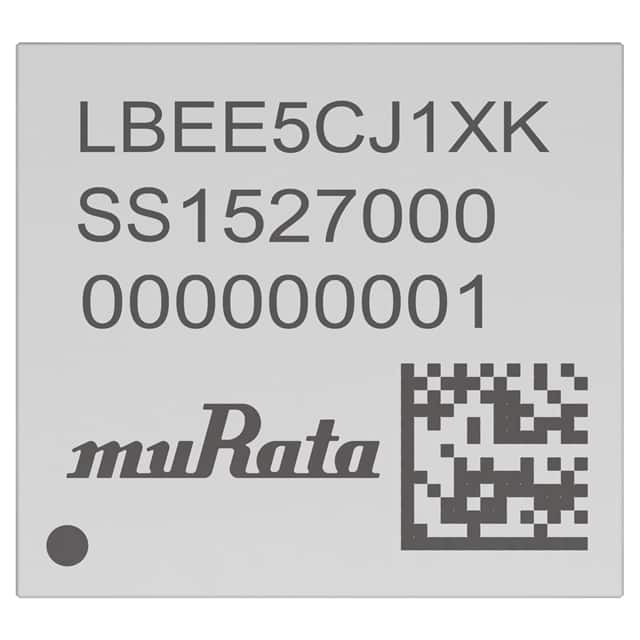

The Murata LBEE5CJ1XK-687 is a high-performance RF transceiver module designed for dual-band wireless applications. It integrates WiFi (802.11a/b/g/n) and Bluetooth v5.2 protocols, enabling robust wireless communication.
This module operates across the 2.4GHz and 5GHz frequency bands, offering a data rate of up to 150Mbps. It supports various modulation schemes including CCK, DSSS, and OFDM, ensuring compatibility with diverse wireless standards. The integrated PCB trace antenna simplifies design and reduces board space.
Designed for surface mounting, the LBEE5CJ1XK-687 comes in an 81-SMD Module package. It operates with supply voltages of 1.8V and 3.3V and functions within an extended temperature range of -40°C to 85°C. The module utilizes the NXP IW416 IC and features SDIO and UART serial interfaces for seamless integration into embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
It supports 2.4GHz and 5GHz frequencies.
It supports 802.11a/b/g/n and Bluetooth v5.2 protocols.
The data rate is up to 150Mbps.
The available serial interfaces are SDIO and UART.
The operating voltage is 1.8V and 3.3V.
