| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
874 pcs
|
874 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| CPU | |
| Chipset | |
| Flash Memory | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| RAM | |
| RF Family | |
| Receive Mode Current | |
| Receiver Sensitivity | |
| Serial Interfaces | |
| Transmit Mode Current | |
| Transmit Power | |
| Voltage |

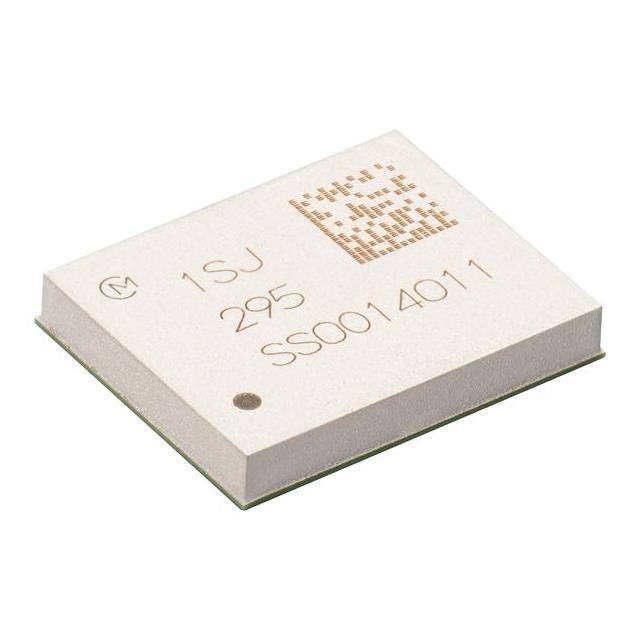

The Murata Type 1SJ LBAA0QB1SJ-295 is a highly integrated LPWA module designed for long-range, low-power wireless applications. Measuring just 10.0 mm x 8.0 mm x 1.6 mm, it is one of the smallest LoRaWAN modules available.
This module utilizes the Semtech SX1262 RFIC and an STMicroelectronics STM32L0 microcontroller, offering an open MCU for application development. It supports FSK and LoRa modulation and operates across the 868MHz and 915MHz ISM bands, making it suitable for global deployment. Key features include 192kB of Flash memory and 20kB of RAM, providing ample resources for complex applications.
With a supply voltage range of 2.2V to 3.6V and low power consumption, the LBAA0QB1SJ-295 is ideal for battery-powered devices requiring extended operational life. It offers multiple communication interfaces including UART, I2C, SPI, and USB. The module is designed for surface mounting and operates within a temperature range of -40°C to +85°C.
Pre-certified radio regulatory approvals for major regions simplify supply chains. The module is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The module operates in the 868MHz and 915MHz frequency bands.
The module requires a supply voltage between 2.2V and 3.6V.
The operating temperature range is -40°C to +85°C.
It supports FSK and LoRa modulation.
The module features UART, I2C, USB, and SPI interfaces.
The transmit power is up to +21.5dBm.
The receiver sensitivity is -135.5dBm at 1% PER, 125kHz BW, SF=12.
