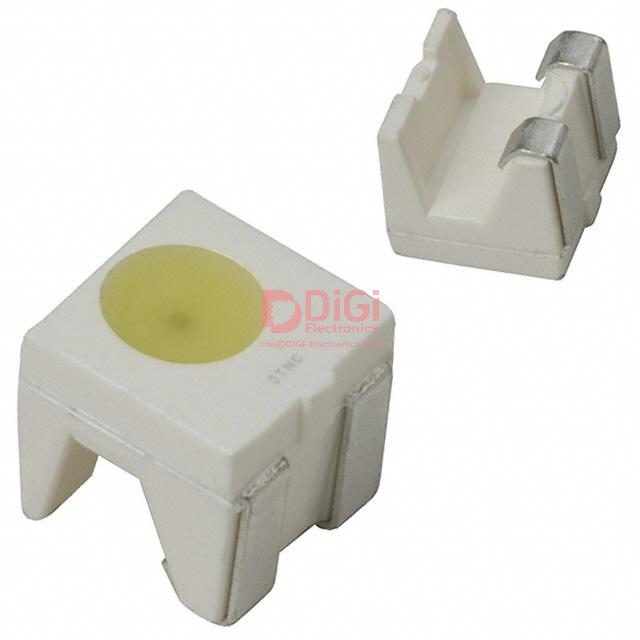

LBA676 This ams-OSRAM LB A676-J2L2-1-0-10-R33-Z is a blue SMD LED with a 3.5V forward voltage and a 465nm dominant wavelength. It features a 120° viewing angle and is housed in a 2-SMD, Boomerang package.
Mfr Part #:

LBA676

Available from 1 distributors
Mfr Name: Osram
Osram
This ams-OSRAM LB A676-J2L2-1-0-10-R33-Z is a blue SMD LED with a 3.5V forward voltage and a 465nm dominant wavelength. It features a 120° viewing angle and is housed in a 2-SMD, Boomerang package.
✓ Total Stock: 114,000 pcs
$ Price Range: $0.99

LBA676 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ACK ELEKTRONIK ✓
Non-Authorised Inventory information
114,000 pcs
On Request
114000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LBA676 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Height
Lens Size
Mounting Type
Supplier Device Package
Viewing Angle
View Similar Products (0)

LBA676 Description

Short technical summary and product information.

The ams-OSRAM LB A676-J2L2-1-0-10-R33-Z is a blue surface mount (SMD) Light Emitting Diode (LED) designed for discrete indication applications. It operates with a typical forward voltage of 3.5V and emits blue light with a dominant wavelength of 465nm and a peak wavelength of 428nm. The LED provides a luminous intensity of 11.8mcd at a test current of 10mA and offers a wide viewing angle of 120°.



This component is packaged in a 2-SMD, Boomerang configuration, suitable for right-angle surface mounting. Its dimensions are 4.00mm in length and 3.60mm in width, with a maximum height of 4.20mm. The lens is clear and round with a flat top, measuring 2.40mm in diameter.



This LED is classified under the SIDELED® series. It is suitable for various indication purposes where a clear blue light output is required. The product status is listed as obsolete.

LBA676 Quick Information

Product Type: SMD LED
Series: SIDELED®
Canonical Name: ams-OSRAM LB A676-J2L2-1-0-10-R33-Z Blue SMD LED

LBA676 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LBA676 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LBA676 Features

  • Blue SMD LED for discrete indication.
  • 3.5V typical forward voltage.
  • 465nm dominant wavelength.
  • 120° wide viewing angle.
  • Surface mount, right angle package.

LBA676 Applications

  • Suitable for LED indicator applications.
  • Used in electronic display backlighting.
  • Ideal for signaling and status indicators.
  • Applicable in consumer electronic devices.
  • Suitable for automotive lighting systems.

LBA676 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the LB A676-J2L2-1-0-10-R33-Z LED?

The typical forward voltage for the LB A676-J2L2-1-0-10-R33-Z LED is 3.5V at 10mA.

What is the dominant wavelength of this blue LED?

The dominant wavelength of the LB A676-J2L2-1-0-10-R33-Z LED is 465nm.

What is the viewing angle of the LB A676-J2L2-1-0-10-R33-Z LED?

The viewing angle of the LB A676-J2L2-1-0-10-R33-Z LED is 120 degrees.

What package type is the LB A676-J2L2-1-0-10-R33-Z LED supplied in?

The LB A676-J2L2-1-0-10-R33-Z LED is supplied in a 2-SMD, Boomerang package.

How is the LB A676-J2L2-1-0-10-R33-Z LED mounted?

The LB A676-J2L2-1-0-10-R33-Z LED is designed for surface mount, right angle mounting.
