| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,353 pcs
|
4353 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Nominal/Maximum) | |
| Pitch | |
| Self Resonant Frequency | |
| Shielding | |
| Standard Packaging Quantity | |
| Supplier Device Package | |
| Temperature Characteristic | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Typical/Maximum) |

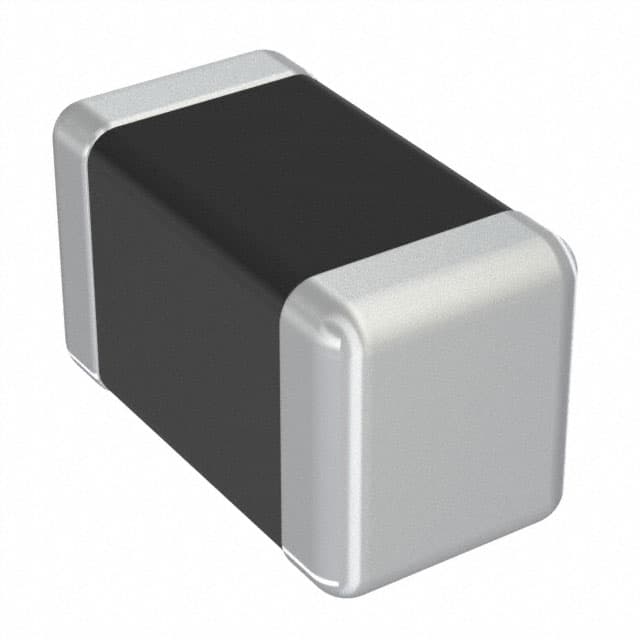

The Taiyo Yuden LB3218T1R0M is a wirewound chip inductor designed for surface mount applications. It offers an inductance value of 1 µH with a tolerance of ±20% and a maximum rated current of 1.075A. The DC resistance is typically 60 mΩ.
This inductor operates within a temperature range of -40°C to +105°C. It has a case size of 1207 (3218 Metric) with dimensions of 3.2mm in length, 1.8mm in width, and 1.8mm in height. The self-resonant frequency is a minimum of 100 MHz.
The LB3218T1R0M is constructed with a ferrite core and is unshielded. It is compliant with RoHS3 and Halogen Free standards. The standard packaging quantity is 2000 pieces on tape and reel.
This component is suitable for general electronic equipment applications. Before final selection, it is recommended to check the product specification for specific environmental or measurement conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 1 µH with a tolerance of ±20%.
The maximum rated current is 1.075 A.
The typical DC Resistance is 60 mΩ.
The operating temperature range is -40°C to +105°C.
It comes in a 1207 (3218 Metric) surface mount package.
It is supplied in tape and embossed reel packaging with a standard quantity of 2000 pieces.
