LB1929-E The On Semiconductor LB1929-E is a motor driver with a supply voltage range of 9.5V to 28V and an output current of 3.5A. It is designed for general-purpose applications.
Mfr Part #:

LB1929-E

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor LB1929-E is a motor driver with a supply voltage range of 9.5V to 28V and an output current of 3.5A. It is designed for general-purpose applications.
✓ Total Stock: 4,995 pcs
$ Price Range: $2.25

LB1929-E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
4,995 pcs
On Request
4995 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LB1929-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Technology
Voltage
View Similar Products (0)

LB1929-E Description

Short technical summary and product information.

The LB1929-E from On Semiconductor is a highly integrated motor driver designed for general-purpose applications. This component operates within a supply voltage range of 9.5V to 28V and can deliver an output current of up to 3.5A.



Featuring Bipolar technology, the LB1929-E functions as a fully integrated control and power stage, configured in a Half Bridge (3) output setup. It utilizes a parallel interface for control.

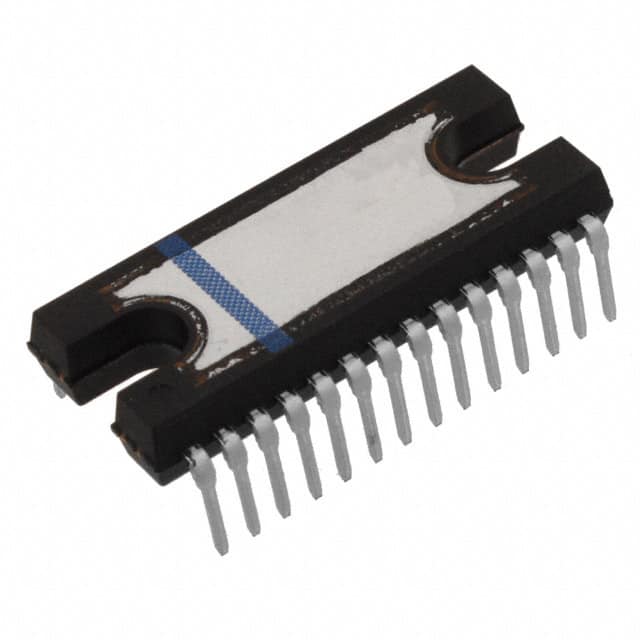

The device is suitable for through-hole mounting and comes in a 28-HDIP package. Its operating temperature range is -20°C to 80°C (TA). The LB1929-E is a versatile choice for various motor control needs in electronic designs.

LB1929-E Quick Information

Product Type: Motor Driver
Canonical Name: LB1929-E Motor Driver
Subcategory: Power Management (PMIC)

LB1929-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LB1929-E Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

LB1929-E Features

  • Integrated control and power stage driver.
  • 3.5A output current capability.
  • 9.5V to 28V supply voltage range.
  • Through Hole mounting type.
  • Bipolar technology for motor control.

LB1929-E Applications

  • Suitable for general purpose motor driving.
  • Integrated solution for power stage.
  • Designed for parallel interface control.
  • Wide operating voltage range.

LB1929-E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range of the LB1929-E?

The supply voltage range is 9.5V to 28V.

What package is the LB1929-E available in?

The LB1929-E is available in a 28-SDIP (0.500", 12.70mm) exposed pad package, also known as 28-HDIP.

What is the operating temperature range of the LB1929-E?

-20°C to 80°C.

What is the maximum output current of the LB1929-E?

3.5A.

What interface does the LB1929-E use?

Parallel interface.

What type of motor is the LB1929-E designed for?

Brushless DC (BLDC) motors.

How many half-bridge outputs does the LB1929-E have?

Three half-bridge outputs.
