| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58,950 pcs
|
58950 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Voltage |
The LB1860M-TLM-E from On Semiconductor is a fully integrated motor driver IC, combining control and power stage functions. It is designed for driving DC motors and general-purpose applications.
This device features a current rating of 1.5A and supports operating voltages of 12V and 24V. The technology used is Bipolar, with an output configuration of two Half Bridges. The interface is parallel, and it is suitable for Brushless DC (BLDC) motors.

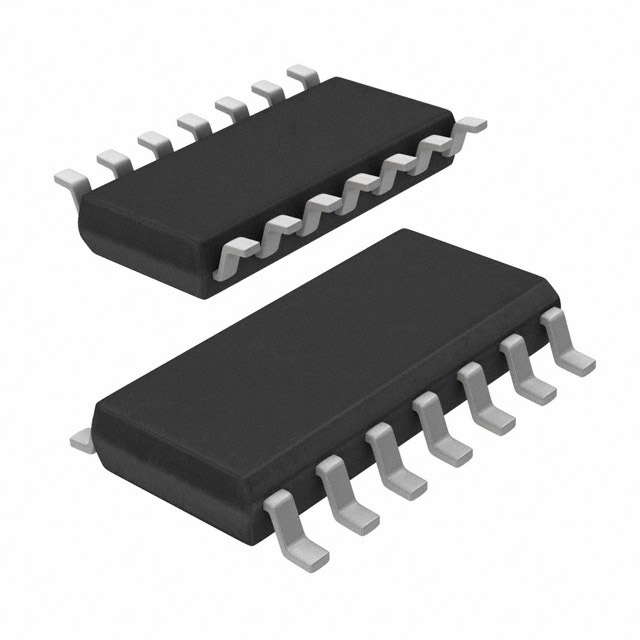

The LB1860M-TLM-E is housed in a 14-MFPS package, specifically a 14-LSOP (0.173", 4.40mm Width) for surface mounting. It operates within a temperature range of -30°C to 80°C (TA).
This motor driver IC is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. It is designed for reliable performance in various motor control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LB1860M-TLM-E operates at 12V or 24V.
The LB1860M-TLM-E can deliver up to 1.5A.
It is available in a surface mount 14-LSOP package with a 4.40mm width, also known as 14-MFPS.
The operating temperature range is -30°C to 80°C.
It is designed for brushless DC (BLDC) motors.
It has a half bridge (2) output configuration.
It uses a parallel interface.
