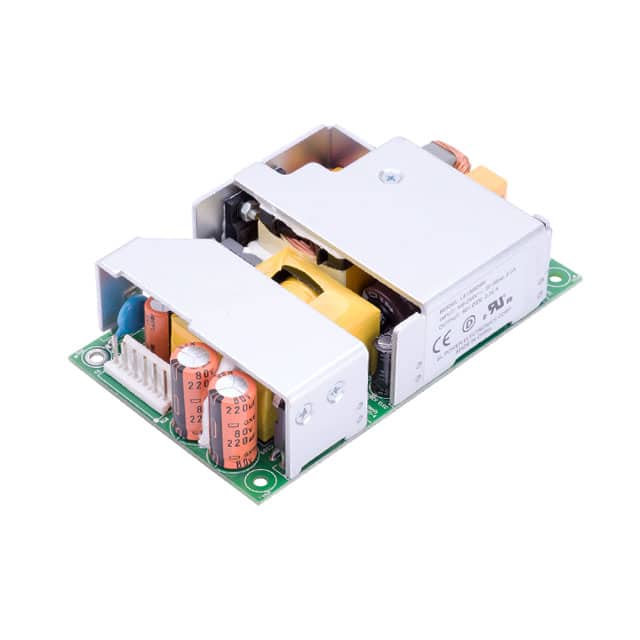

The SL Power Electronics LB130S56K is a high-density, single-output, open-frame AC/DC power supply from the LB130S series. It delivers a total power of 130 Watts and operates with a universal input voltage range of 90 to 264 VAC.
Key electrical specifications include a 56VDC output voltage and 2.32A output current, providing 130W of power. The unit boasts a minimum efficiency of 90% and features like Power Factor Correction (PFC) and universal input. It is designed for chassis mounting and operates within a wide temperature range of -10°C to 70°C with derating.
This power supply meets safety standards including EN/CSA/IEC/UL 62368-1. It also complies with EMI standards such as Class B conducted emissions and Class A radiated emissions. Protection features include overvoltage, short circuit, and thermal protection.
The compact dimensions of 127.0mm x 76.2mm x 31.1mm make it suitable for various industrial applications.
The LB130S56K accepts a universal input voltage of 90 to 264 VAC.
The LB130S56K provides a single output of 56 VDC at 2.32 A, delivering 130 W of output power.
The LB130S56K operates over a temperature range of -10°C to 70°C with derating.
The LB130S56K includes overvoltage protection (latch off), short circuit protection (hiccup mode, auto recovery), overload protection (hiccup mode), and thermal protection.
The LB130S56K achieves up to 90% efficiency.
The LB130S56K measures 127.0mm x 76.2mm x 31.1mm (5.00" x 3.00" x 1.22").
The LB130S56K provides 3 kV isolation voltage.
