| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,000 pcs
|
60000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Input Type | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |

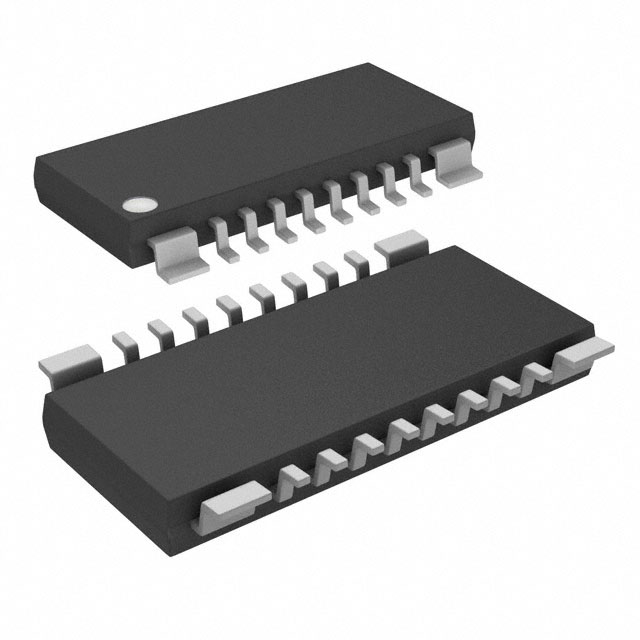

The On Semiconductor LB1205M-TLM-E is a power distribution switch designed for various applications. This component features a Darlington output configuration and operates with a voltage range of 3.5V to 7V, capable of handling up to 1.5A of current.
It is designed for surface mount installation, utilizing a 16-MFPFS package. The operating temperature range is specified from -20°C to 75°C (TA). The switch type is general purpose with a non-inverting input and a low-side output configuration.
Key electrical characteristics include a 1:1 ratio and 4 outputs. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.5V to 7V.
The device is available in a 16-MFPFS package, which is a 16-lead LSOP (0.213", 5.40mm Width) with 4 heat tabs, surface mount.
The operating temperature range is -20°C to 75°C (ambient temperature).
The device has 4 outputs.
The output is low side Darlington configuration.
The current rating is 1.5A per output.
The mounting type is surface mount.
