| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34,000 pcs
|
34000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

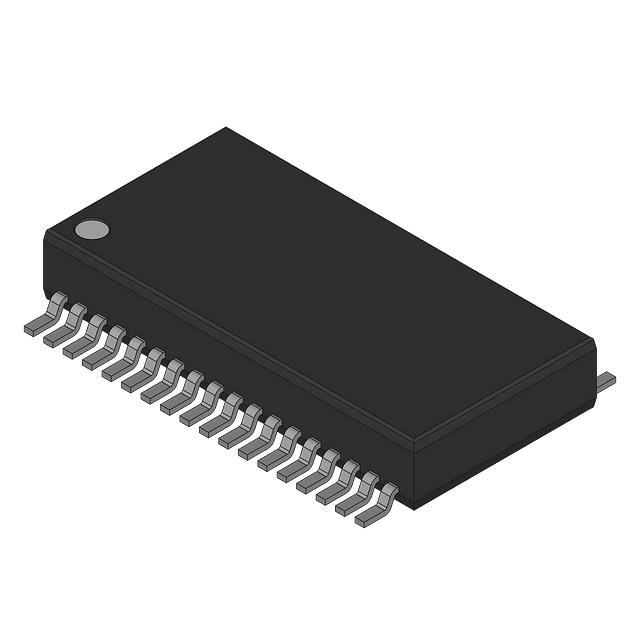

The LB11922-TLM-E from Sanyo is a motor driver controller designed for 3-phase brushless DC (BLDC) motors. It features a supply voltage range of 4.4V to 7V, making it suitable for various general-purpose applications.
This controller offers functions for commutation and direction management, with an output configuration of Pre-Driver - Half Bridge (3). It utilizes a parallel interface for communication. The device is designed for surface mount installation and comes in a 36-LSOP package.
The operating temperature range for the LB11922-TLM-E is -20°C to 80°C (TA). Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1 Unlimited. REACH status is listed as REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.4V to 7V.
The operating temperature range is -20°C to 80°C.
It comes in a 36-LSOP (0.220, 5.60mm Width) surface mount package, also known as 36-SSOP.
It is a controller for commutation and direction management of brushless DC motors.
It uses a parallel interface.
It is designed for brushless DC (BLDC) motors.
The output configuration is a pre-driver with three half-bridge stages.
