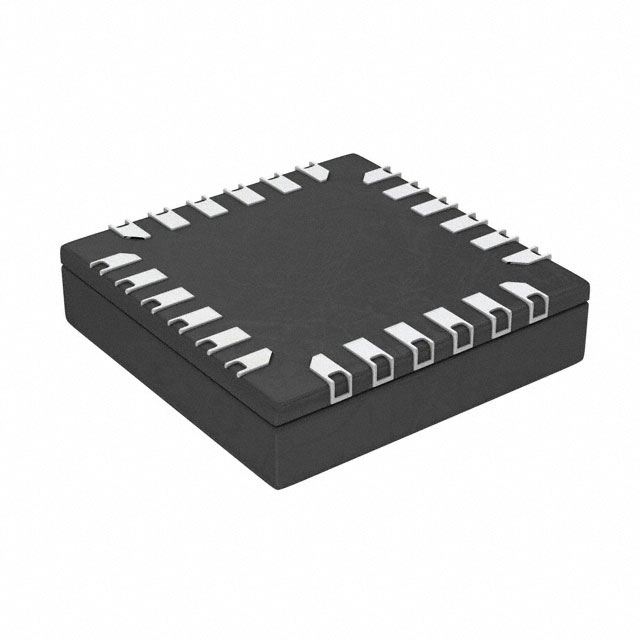

LB11620GP-TE-L-H The ON Semiconductor LB11620GP-TE-L-H is an IC Motor Driver Controller designed for general-purpose applications. It features a PWM interface and operates within a supply voltage range of 4.5V to 17V.
Mfr Part #:

LB11620GP-TE-L-H

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor LB11620GP-TE-L-H is an IC Motor Driver Controller designed for general-purpose applications. It features a PWM interface and operates within a supply voltage range of 4.5V to 17V.
✓ Total Stock: 36,000 pcs
$ Price Range: $2.25

LB11620GP-TE-L-H Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
36,000 pcs
On Request
36000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LB11620GP-TE-L-H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
Supplier Device Package
Voltage
Voltage Supply
View Similar Products (0)

LB11620GP-TE-L-H Description

Short technical summary and product information.

The ON Semiconductor LB11620GP-TE-L-H is an integrated circuit designed for motor control applications. It functions as a controller for commutation and direction management, utilizing a PWM interface.



This motor driver controller supports Brushless DC (BLDC) motors and is suitable for general-purpose applications. It operates with a dual supply voltage range of 4.5V to 5.5V and 8V to 17V. The output configuration includes Pre-Driver - Half Bridge (3).



Packaged in a 24-WFQFN with a 24-VCT (3.5x3.5) supplier device package, this component is designed for surface mounting. The operating temperature range is from -30°C to 100°C (TA).

LB11620GP-TE-L-H Quick Information

Product Type: Motor Driver Controller
Canonical Name: On Semiconductor LB11620GP-TE-L-H IC Motor Controller
Subcategory: Motor Driver Controller

LB11620GP-TE-L-H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LB11620GP-TE-L-H Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

LB11620GP-TE-L-H Features

  • IC Motor Driver Controller for BLDC motors.
  • Dual supply voltage: 4.5V-5.5V and 8V-17V.
  • PWM interface for control.
  • Surface Mount package.
  • Operating temperature: -30°C to 100°C.

LB11620GP-TE-L-H Applications

  • Suitable for general purpose motor control.
  • Used in BLDC motor applications.
  • Designed for industrial automation.

LB11620GP-TE-L-H FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the LB11620GP-TE-L-H?

The device operates at 4.5V to 5.5V or 8V to 17V.

What is the operating temperature range?

-30°C to 100°C.

What is the function of this IC?

Controller for commutation and direction management of brushless DC motors.

What interface does it use?

PWM (Pulse Width Modulation).

What is the output configuration?

Pre-driver - half bridge (3 outputs).

What is the package type?

24-WFQFN (24-VCT) surface mount package.

What type of motor does it support?

Brushless DC (BLDC) motors.
