| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

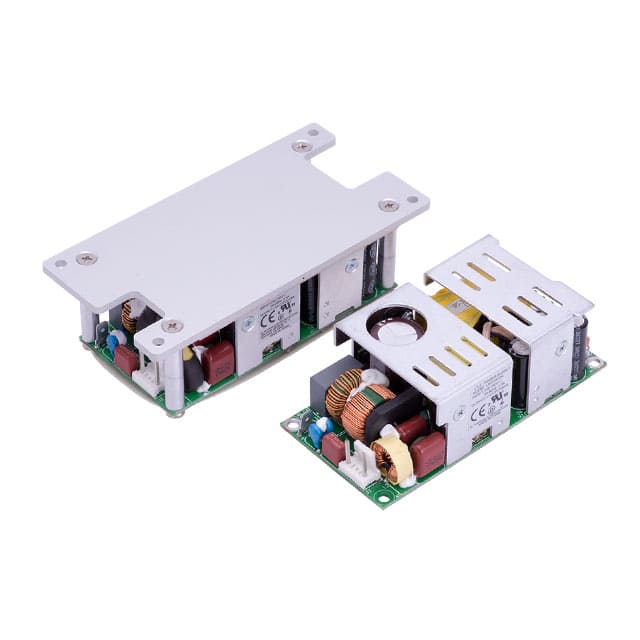

The SL Power Electronics LB115S12K is an open frame AC/DC converter designed for ITE (Commercial) applications. It features a universal input voltage range of 90 to 264 VAC, making it suitable for global use.
This model delivers a single output of 12V at up to 6.25A, providing a maximum of 75W under convection cooling. With forced air cooling, it can handle up to 110W. The converter operates efficiently, with a typical efficiency of 89% at full load.
Designed for versatility, the LB115S12K has a compact chassis mount package measuring 101.6mm x 50.8mm x 32.1mm. It operates within an ambient temperature range of -20°C to 70°C, with derating applied. Safety approvals include CE marking.
Key electrical specifications include a 3 kV isolation voltage, low leakage current, and a hold-up time of 12 ms. The unit meets EN55015 conducted EMI standards and Level V efficiency requirements.
The LB115S12K accepts a universal input voltage range of 90 to 264 VAC.
The LB115S12K provides a single output of 12V at a maximum current of 6.25A.
The LB115S12K delivers a maximum of 75W under convection cooling and up to 110W with forced air cooling.
The operating temperature range for the LB115S12K is -20°C to 70°C, with derating applied.
The LB115S12K measures 101.6mm x 50.8mm x 32.1mm.
Yes, the LB115S12K is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LB115S12K is 1.
