| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Current - Test | |
| ESD Withstand Voltage | |
| Forward Current | |
| Forward Voltage (@ min.) | |
| Forward Voltage (@ typ.) | |
| Forward Voltage (Max) | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature Range | |
| Real Thermal Resistance Junction/Ambient | |
| Real Thermal Resistance Junction/Solder Point | |
| Reverse Current (@ VR = 5 V, max.) | |
| Reverse Current (@ VR = 5 V, typ.) | |
| Reverse Voltage | |
| Size / Dimension | |
| Spectral Bandwidth at 50% Irel max | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Surge Current | |
| Viewing Angle | |
| Viewing Angle (@ typ.) | |
| Voltage | |
| Wavelength | |
| Wavelength Dominant (@ max.) | |
| Wavelength Dominant (@ min.) | |
| Wavelength Dominant (@ typ.) | |
| Wavelength Dominant (Unspecified condition) | |
| Wavelength Peak (@ typ.) | |
| Wavelength Peak (Unspecified condition) |

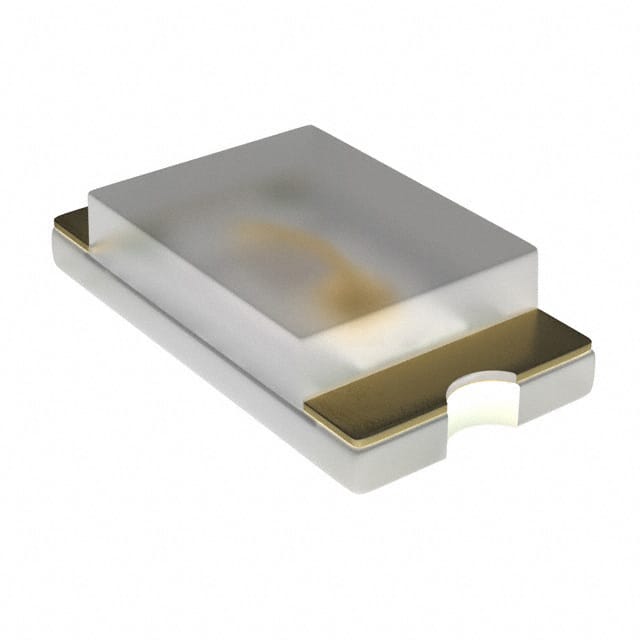

This Osram LB Q39G-L2OO-35-1 is a blue LED designed for indication applications. It comes in a compact 0603 SMT package, making it suitable for space-constrained designs.
The LED features a dominant wavelength of 470nm and a peak emission wavelength of 472nm, producing a distinct blue light. The typical forward voltage is 2.85V at a test current of 5mA, with a luminous intensity rating of 29.5mcd. The viewing angle is broad, measuring 155° horizontally and 135° vertically.
With a maximum forward current of 15mA and a reverse voltage rating of 5V, this component is built for reliable operation. The operating temperature range is -30°C to 85°C, and storage temperature is -40°C to 85°C. The ESD withstand voltage is up to 2kV.
Applications include LCD backlighting, toys, signal and symbol luminaries, and optical indicators. The 0603 package size is 1.60mm L x 0.80mm W with a maximum height of 0.40mm, and it is available in Tape & Reel or Cut Tape packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 470nm.
The typical forward voltage is 2.85V.
The luminous intensity is rated at 29.5mcd.
The viewing angle is 155° horizontally and 135° vertically.
It is a 0603 SMT package.
The operating temperature range is -30°C to 85°C.
Yes, it is RoHS3 Compliant.
