| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
492 pcs
|
492 pcs | On Request | 1 | On Request | On Request | 1132 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Country of Origin | |
| Current | |
| Depth | |
| For Measuring | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Supply Voltage | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

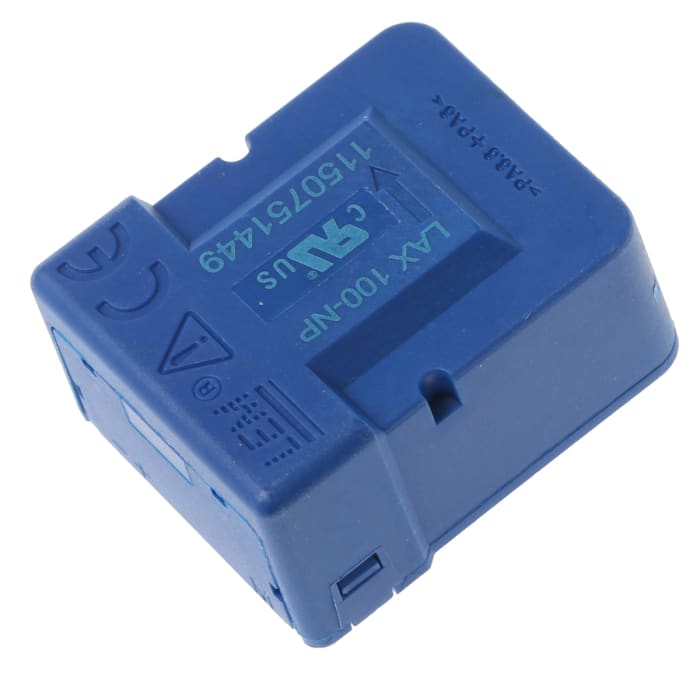

The LEM LAX 100-NP is a versatile current transformer utilizing Hall Effect technology in a closed-loop configuration. It is designed for accurate measurement of both AC and DC currents, offering selectable primary current ranges up to 160A. The sensor provides a ratiometric current output and boasts a wide operating frequency range from DC up to 300kHz.
With a linearity of ±0.1% and an accuracy of ±0.91%, the LAX 100-NP ensures precise readings. It operates within a broad temperature range of -40°C to 85°C, making it suitable for various environmental conditions. The device is mounted via a through-hole method and comes in a module package.
Key electrical specifications include a supply voltage range of ±11.4V to 15.75V and a response time of 0.2µs. The sensor is bidirectional and compliant with IEC 61010-1-safety, EN 50178, and UL508 standards, indicated by the UR marking. Its compact dimensions and robust design make it a reliable choice for industrial automation and control applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The primary current rating is 160 A.
The selectable secondary current values are 25 A and 50 A.
The operating temperature range is -40°C to 85°C.
It is a Hall Effect, closed-loop sensor.
The mounting type is Through Hole.
