Mfr Part #:

LAN9500A-ABZJ

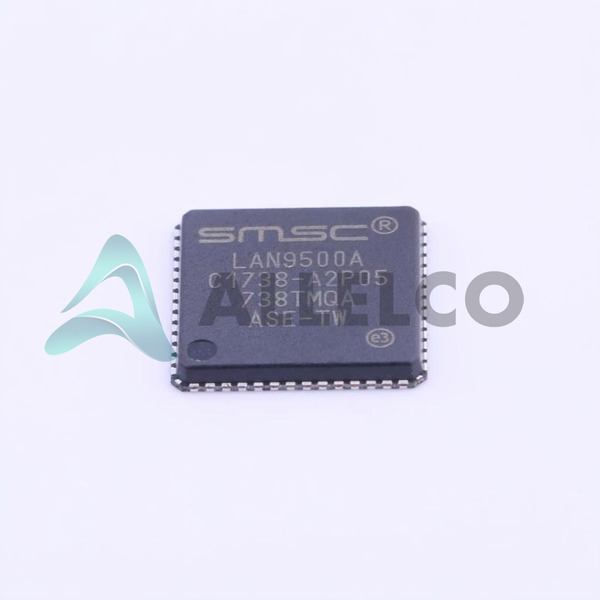

The Microchip Technology LAN9500A-ABZJ is an integrated circuit designed for USB to Ethernet connectivity. It supports USB 2.0 and 10/100 Base-T/TX Ethernet standards.

✓ Total Stock: 193,459 pcs

LAN9500A-ABZJ Available from 4 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	180,000 pcs On Request	180000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	9,500 pcs On Request	9500 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	2,500 pcs On Request	2500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	1,459 pcs On Request	1459 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

LAN9500A-ABZJ Description

Short technical summary and product information.

The Microchip Technology LAN9500A-ABZJ is a versatile interface controller that bridges USB 2.0 to a 10/100 Ethernet connection. This IC is designed for applications requiring reliable network connectivity through a USB interface.

Key specifications include an operating temperature range of 0°C to 70°C, making it suitable for various environmental conditions. It operates with multiple voltage levels, including 1.2V, 2.5V, and 3.3V. The device comes in a 56-QFN (8x8) package with an exposed pad, identified as 56-VFQFN Exposed Pad, facilitating efficient thermal management.

This controller adheres to USB 2.0 standards and supports 10/100 Base-T/TX Ethernet PHY. Its primary function is to act as a bridge, enabling seamless communication between USB devices and Ethernet networks. The LAN9500A-ABZJ is an ideal component for embedded systems, development boards, and other applications where Ethernet connectivity is needed via a USB port.

LAN9500A-ABZJ Quick Information

Product Type: Interface Controller

Canonical Name: Microchip Technology LAN9500A-ABZJ

Subcategory: Controllers

LAN9500A-ABZJ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LAN9500A-ABZJ Features

USB 2.0 to 10/100 Ethernet bridge controller.
Supports USB 2.0 and 10/100 Base-T/TX PHY.
Operates from 0°C to 70°C temperature range.
Available in a 56-QFN (8x8) package.
Supports 1.2V, 2.5V, and 3.3V operation.

LAN9500A-ABZJ Applications

Used in USB to Ethernet bridging devices
Suitable for embedded networking systems
Ideal for industrial automation equipment
Supports network interface applications

LAN9500A-ABZJ FAQs

5 frequently asked questions generated from this part’s specifications.

What is the operating temperature range for the LAN9500A-ABZJ?

The operating temperature range is 0°C to 70°C.

What package type is the LAN9500A-ABZJ supplied in?

It is supplied in a 56-VFQFN Exposed Pad package.

What are the supported voltage levels for this controller?

It supports 1.2V, 2.5V, and 3.3V.

What is the primary function of the LAN9500A-ABZJ?

Its primary function is to act as a bridge between USB and Ethernet.

What Ethernet and USB standards does the LAN9500A-ABZJ comply with?

It complies with USB 2.0 and 10/100 Base-T/TX PHY standards.

Category	Controllers
Manufacturer Name	Microchip Technology
AEC Qualified	No
Automotive Grade	No
Function	Bridge, USB to Ethernet
Industrial Grade	No
Interface	USB
Medical Grade	No
Military Grade	No
Operating Temperature	0°C ~ 70°C
Protocol	Ethernet
Standards	USB 2.0, 10/100 Base-T/TX PHY
Supplier Device Package	56-QFN (8x8)
Voltage	1.2V, 2.5V, 3.3V
