Mfr Part #:

LAN91C96-MU

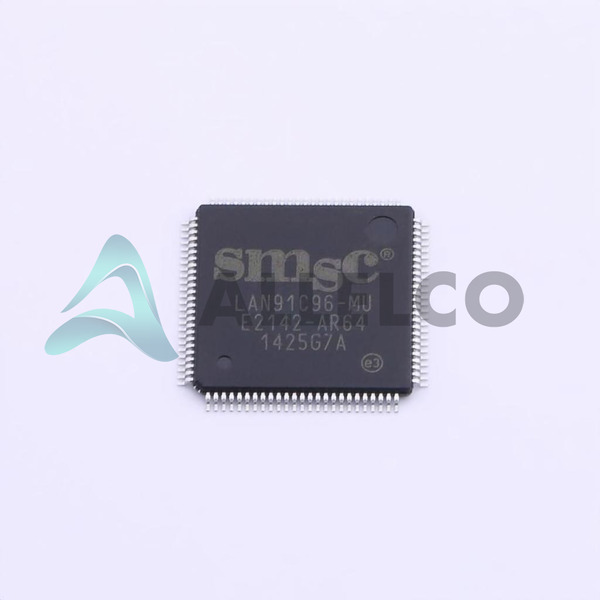

The Microchip Technology LAN91C96-MU is a Non-PCI Single-Chip Full Duplex Ethernet Controller. It operates at 3.3V and supports 10 Base-T PHY standards.

✓ Total Stock: 5,570 pcs

LAN91C96-MU Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	4,070 pcs On Request	4070 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,500 pcs On Request	1500 pcs	On Request	1	On Request	On Request	2020+	On Request	On Request

LAN91C96-MU Description

Short technical summary and product information.

The Microchip Technology LAN91C96-MU is a Non-PCI Single-Chip Full Duplex Ethernet Controller designed for high-performance networking applications. This controller supports a subset of the Motorola 68000 bus interface and is fully compliant with IEEE 802.3 Ethernet standards, specifically the 10 Base-T PHY.

Key features include 6K Bytes of on-chip RAM, enhanced transmit queue management, and automatic detection of TX/RX polarity reversal. It also incorporates enhanced power management features, including support for "Magic Packet" technology. The device operates at a single +3.3V supply voltage and is housed in a 100-pin TQFP package.

With its flexible bus interface supporting 16-bit data and control paths, the LAN91C96-MU offers direct interface to local bus, PCMCIA, and 68000 buses with no wait states. It is pin-compatible with the LAN91C92 and LAN91C94, facilitating upgrades and design flexibility. The integrated 10BASE-T transceiver functions include driver and receiver, link integrity test, and receive polarity detection and correction.

This controller is suitable for various network interface designs requiring reliable and efficient Ethernet connectivity. Its low power CMOS design and lead-free RoHS compliant package make it an environmentally conscious choice for embedded systems.

LAN91C96-MU Quick Information

Product Type: Ethernet Controller

Canonical Name: LAN91C96 Non-PCI Single-Chip Full Duplex Ethernet Controller

Subcategory: Interface

LAN91C96-MU Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free

LAN91C96-MU Features

Non-PCI Single-Chip Ethernet Controller
Supports IEEE 802.3 Ethernet Standards
Integrated 10BASE-T Transceiver
Operates at 3.3V Supply Voltage
100-TQFP Lead-Free RoHS Compliant Package

LAN91C96-MU Applications

Ideal for embedded network systems
Suitable for diskless local bus applications
Facilitates direct interface to buses
Supports full duplex switched Ethernet

LAN91C96-MU FAQs

6 frequently asked questions generated from this part’s specifications.

What type of Ethernet controller is the LAN91C96-MU?

The LAN91C96-MU is a Non-PCI Single-Chip Full Duplex Ethernet Controller with Magic Packet support.

What are the supported Ethernet standards for the LAN91C96-MU?

It supports IEEE 802.3 (ANSI 8802-3) Ethernet Standards, specifically 10 Base-T PHY.

What is the operating voltage for the LAN91C96-MU?

The LAN91C96-MU operates at a 3.3V supply voltage.

What is the operating temperature range for this Ethernet controller?

The operating temperature range for the LAN91C96-MU is 0°C to 70°C.

What package type is the LAN91C96-MU available in?

The LAN91C96-MU is available in a 100-TQFP (14x14) package.

Does the LAN91C96-MU support Magic Packet technology?

Yes, the LAN91C96-MU supports "Magic Packet" Power Management Technology.
