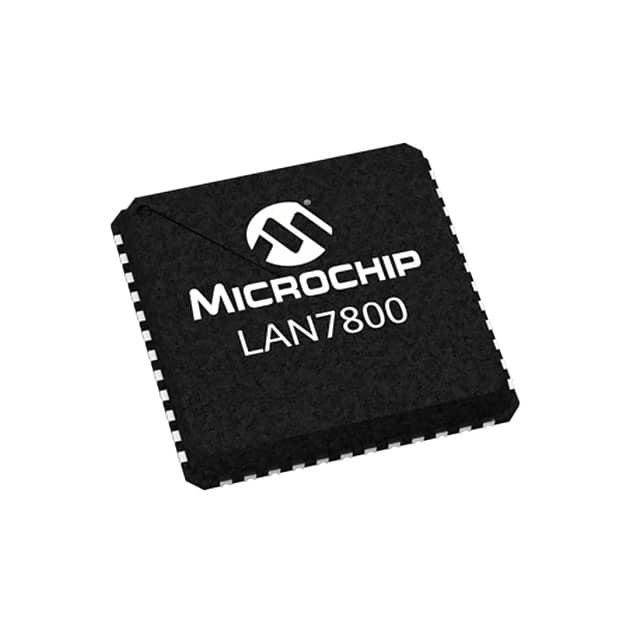

LAN7800T/VSX The Microchip Technology LAN7800T/VSX is an Ethernet controller with a 10/100/1000 Base-T PHY. It operates within a temperature range of 0°C to 70°C and comes in a 48-VFQFN exposed pad package.
Mfr Part #:

LAN7800T/VSX

Available from 2 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology LAN7800T/VSX is an Ethernet controller with a 10/100/1000 Base-T PHY. It operates within a temperature range of 0°C to 70°C and comes in a 48-VFQFN exposed pad package.
✓ Total Stock: 26,983 pcs

LAN7800T/VSX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
6,983 pcs
On Request
6983 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LAN7800T/VSX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Function
Lead Spacing
Operating Temperature
Protocol
Standards
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

LAN7800T/VSX Description

Short technical summary and product information.

The Microchip Technology LAN7800T/VSX is an integrated circuit designed as an Ethernet controller. It supports 10/100/1000 Base-T PHY standards, making it suitable for various networking applications.



This controller operates within a temperature range of 0°C to 70°C and requires voltages of 1.2V, 2.5V, or 3.3V. The device consumes a current of 1 to 4mA.



Packaged in a 48-VFQFN exposed pad, the LAN7800T/VSX is designed for surface mounting. Its compact size and robust specifications make it a reliable choice for embedded systems requiring Ethernet connectivity.

LAN7800T/VSX Quick Information

Product Type: Ethernet Controller
Canonical Name: Microchip Technology LAN7800T/VSX Ethernet Controller
Subcategory: Interface Controllers

LAN7800T/VSX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LAN7800T/VSX Features

  • Ethernet controller with 10/100/1000 Base-T PHY
  • Operates from 0°C to 70°C temperature range
  • Supports 1.2V, 2.5V, and 3.3V operation
  • Low current consumption of 1-4mA
  • Packaged in 48-VFQFN exposed pad

LAN7800T/VSX Applications

  • Suitable for Ethernet network controllers.
  • Used in industrial communication systems.
  • Ideal for embedded Ethernet connectivity.
  • Applicable in smart home automation devices.
  • Supports controller applications in networking.

LAN7800T/VSX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the LAN7800T/VSX?

The operating temperature range is 0°C to 70°C.

What package type is the Microchip Technology LAN7800T/VSX?

The package type is 48-VFQFN Exposed Pad.

What voltages does the LAN7800T/VSX support?

It supports 1.2V, 2.5V, and 3.3V.

What is the RoHS status of the LAN7800T/VSX?

It is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The MSL is 1 Unlimited.
