| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Input Type | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The STMicroelectronics L9733XP is an integrated circuit designed for power distribution and load driving applications. It features 8 N-Channel outputs, capable of delivering up to 1A of current per output. The device operates with a wide load voltage range from 4.5V to 18V and requires a supply voltage between 4.5V and 5.5V.
Key electrical characteristics include an Rds On typically at 700mOhm (maximum) and an SPI interface for control. The switch type is general purpose, with output configurations supporting both high-side and low-side operation. Input type is non-inverting.

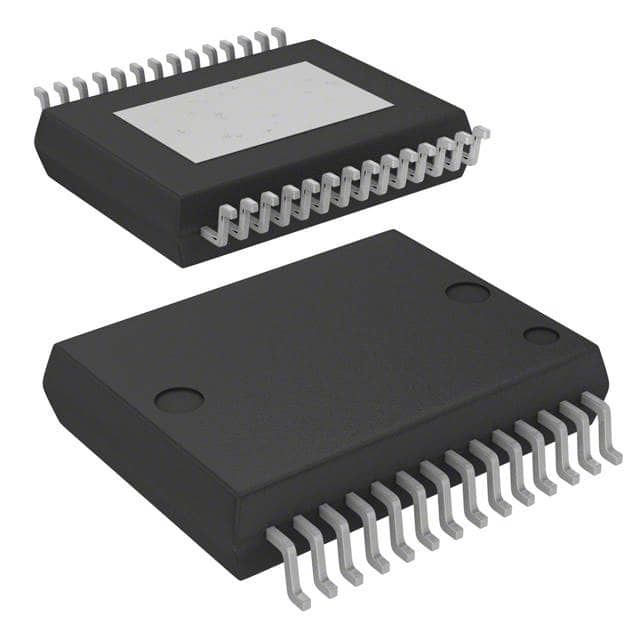

This component includes fault protection features such as open load detection and over-temperature protection, enhancing system reliability. It is designed for surface mount installation in a PowerSSO-28 exposed pad package, specifically a 28-SSOP with an exposed pad measuring 7.50mm in width.
The operating temperature range for the L9733XP is from -40°C to 125°C (TA), making it suitable for various environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 4.5V to 18V.
The supply voltage (Vcc/Vdd) range is 4.5V to 5.5V.
The operating temperature range is -40°C to 125°C.
The L9733XP is available in a PowerSSO-28 package with exposed pad, also described as 28-SSOP (0.295" width) exposed pad.
The L9733XP has 8 outputs.
The L9733XP uses an SPI interface.
The L9733XP includes open load detection and over-temperature protection.
