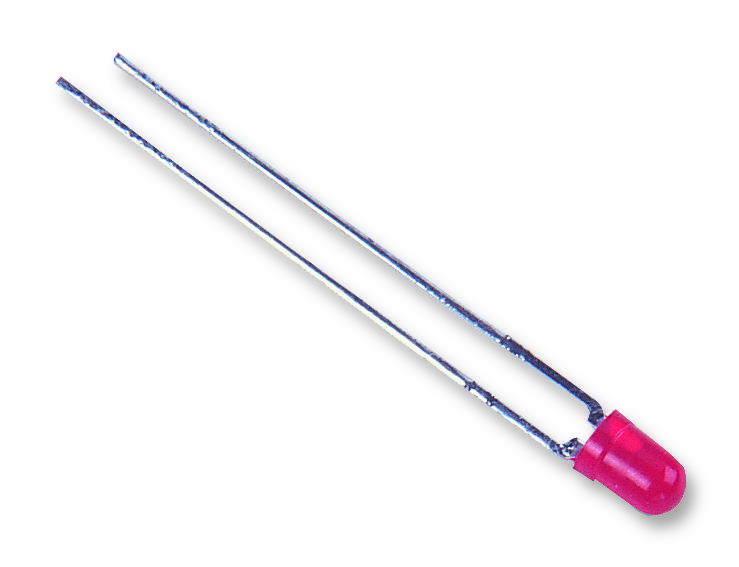

L934LID The Kingbright L934LID is a high-efficiency, red, through-hole LED with a 3mm diameter. It features a 60-degree viewing angle and a diffused red lens.
Mfr Part #:

L934LID

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright L934LID is a high-efficiency, red, through-hole LED with a 3mm diameter. It features a 60-degree viewing angle and a diffused red lens.
✓ Total Stock: 150 pcs

L934LID Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

L934LID Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Lens Type
Material
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Voltage
Viewing Angle
View Similar Products (0)

L934LID Description

Short technical summary and product information.

The Kingbright L934LID is a high-efficiency, round-shaped, through-hole red LED with a 3mm diameter. It emits orange-red light and is constructed from gallium arsenide phosphide on gallium phosphide.



Key electrical specifications include a typical forward voltage of 2.0V at 20mA, a luminous intensity of 3 millicandelas at 2mA, and a dominant wavelength of 625nm. The LED has a peak wavelength of 627nm and a viewing angle of 60 degrees. It is designed for low power consumption and reliable solid-state performance.



This LED is housed in a diffused red lens and operates within a temperature range of -40°C to +85°C. It is suitable for various applications including LED lighting, portable devices, industrial equipment, and consumer electronics. The part is RoHS3 compliant.



Common applications include LED lighting, portable devices, industrial equipment, and consumer electronics.

L934LID Quick Information

Product Type: LED
Canonical Name: Kingbright L934LID Red LED
Subcategory: LED Indication

L934LID Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

L934LID Features

  • High-efficiency red through-hole LED.
  • 3mm round-shaped diffused lens.
  • 60-degree viewing angle.
  • 2.0V forward voltage at 20mA.
  • 3mcd luminous intensity at 2mA.

L934LID Applications

  • Status indicators on control panels.
  • Backlighting for small displays.
  • General purpose through-hole LED applications.
  • Power-on indication in consumer electronics.
  • Low-power indicator lights in appliances.

L934LID FAQs

7 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the L934LID?

The typical forward voltage is 2.0V at 20mA.

What is the forward current rating?

Typical forward current is 20mA, maximum is 30mA. Peak forward current is 160mA.

What is the dominant wavelength of the L934LID?

The dominant wavelength is 625nm, with a peak wavelength of 627nm.

What is the luminous intensity of this LED?

Luminous intensity is 3 millicandelas at 2mA forward current.

What is the viewing angle of the L934LID?

The viewing angle is 60 degrees.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What package does the L934LID come in?

It comes in a 3mm diameter round through-hole package with a diffused lens.
