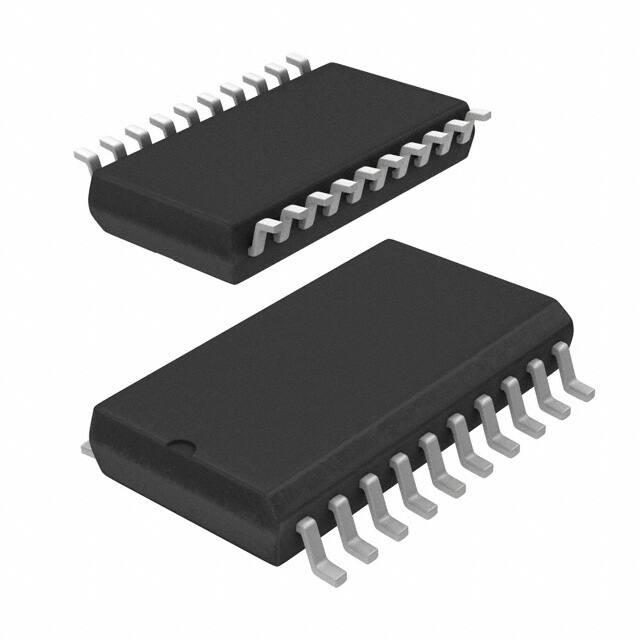

The STMicroelectronics L9338MD/TR is an N-Channel Power Management Integrated Circuit (PMIC) belonging to the Power Distribution Switches and Load Drivers category. This component is designed for efficient power management in various applications.
Key electrical specifications include a nominal supply voltage of 14V, with a maximum supply voltage of 32V. It offers a continuous output current of 1.2A and a nominal output peak current limit of 0.7A. The device operates with a nominal supply current of 2mA and has a load voltage range from 4.5V to 32V. Built-in protections include transient and overvoltage (OV) fault protection.
The L9338MD/TR operates within a temperature range of -40°C to 150°C TJ. It is housed in a 20-SOIC surface-mount package with gull-wing terminals, measuring 7.50mm in width. The terminal pitch is 1.27mm, and it has 20 pins and 20 terminations.
This PMIC is suitable for applications requiring reliable power switching and load driving capabilities. Its robust design and integrated protections make it a versatile component for demanding electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 32V, with a nominal supply of 14V.
It is available in a 20-SOIC package (0.295 inch width, 7.50mm width) with surface-mount gull wing terminals.
The operating junction temperature range is -40°C to 150°C.
It contains four drivers.
Each driver can deliver 1.2A continuous output current with a peak current limit of 0.7A.
It has built-in transient protection and overvoltage protection.
The typical drain-to-source on-resistance is 3.5 Ohms.
