| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

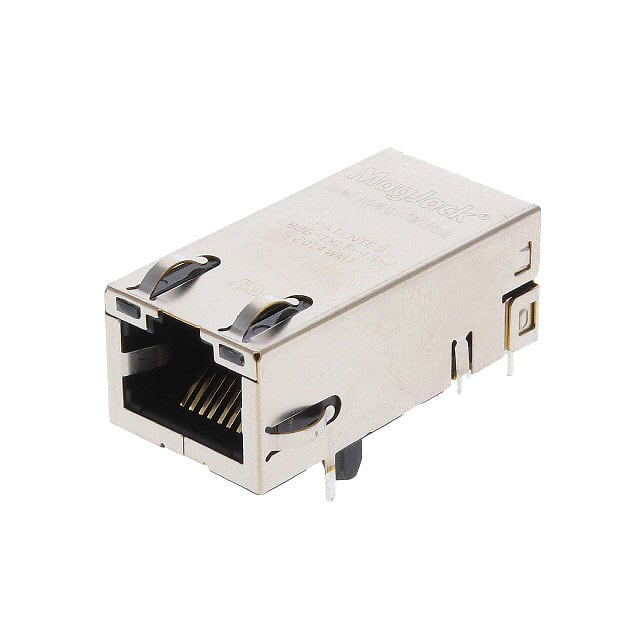

The Bel Fuse L826-1X1T-43-F is a single port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. It features a shielded construction with an EMI finger for enhanced electromagnetic interference protection.
The connector has 8 contacts per jack with gold plating over copper alloy contacts, ensuring reliable signal integrity. It is through hole mounted with a right angle (90°) orientation and tab up direction. The height above board is 0.489 inches (12.42mm).
This jack includes a board guide feature for alignment during assembly. It operates over a temperature range of 0°C to 70°C. The LED indicators are green and orange-yellow, providing link/activity status visibility.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.82 | $6.82 |
| 10+ | $5.80 | $5.80 |
| 25+ | $5.64 | $5.64 |
| 40+ | $5.00 | $5.00 |
| 120+ | $4.86 | $4.86 |
| 280+ | $4.68 | $4.68 |
| 520+ | $4.38 | $4.38 |
| 1,000+ | $4.18 | $4.18 |
| 2,520+ | $3.92 | $3.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45
1 port
Through hole
90° angle (right)
0°C to 70°C
10/100/1000 Base-T and AutoMDIX
Gold
