| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination |

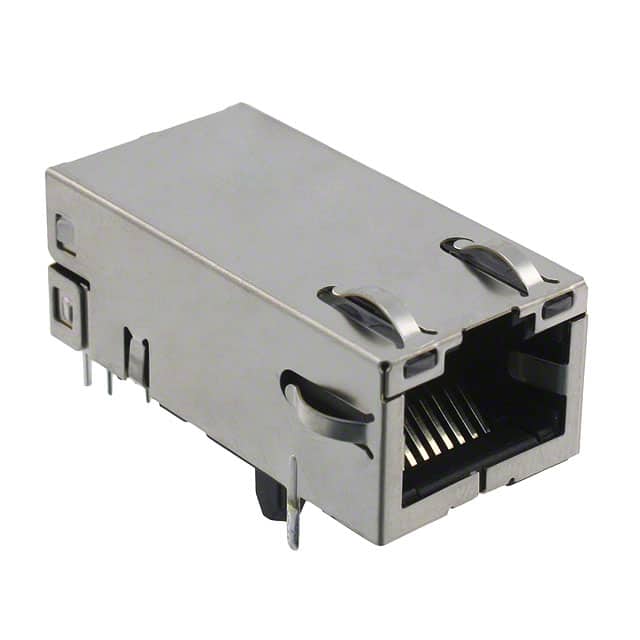

The Bel Fuse L826-1X1T-23-F is a single-port RJ45 connector with integrated magnetics, designed for Ethernet applications. It supports 10/100/1000 Base-T with AutoMDIX, ensuring compatibility with various network speeds. The connector features a right-angle (90°) orientation with tab up, facilitating easy PCB integration. It is through hole mounted and terminated via solder, providing a robust mechanical connection.
Shielding is provided with EMI fingers to reduce electromagnetic interference, and the connector includes a board guide for alignment during assembly. Dual LED indicators (green and orange-yellow) offer visual status feedback. The contact material is copper alloy with gold finish, ensuring reliable electrical performance. The operating temperature range is 0°C to 70°C, suitable for typical commercial environments.
This component is ideal for networking equipment such as switches, routers, and industrial control systems where integrated magnetics simplify design and save board space.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.43 | $8.43 |
| 10+ | $7.58 | $7.58 |
| 25+ | $7.14 | $7.14 |
| 40+ | $6.96 | $6.96 |
| 120+ | $6.78 | $6.78 |
| 280+ | $6.04 | $6.04 |
| 520+ | $5.68 | $5.68 |
| 1,000+ | $5.02 | $5.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions (cores per jack).
Through hole mounting.
0°C to 70°C.
Yes, it supports 10/100/1000 Base-T with AutoMDIX.
Shielded with EMI fingers.
Green and orange-yellow.
