| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47,274 pcs
|
47274 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Quiescent Current | |
| Tape & Reel |
The STMicroelectronics L79L05ACZ is a negative voltage regulator designed for a wide range of applications requiring local on-card regulation. It provides a fixed output voltage of -5V and can deliver an output current of up to 100mA.
Key electrical specifications include a maximum input voltage of -30V and a typical quiescent current of 5.5mA. The device incorporates internal current limiting and thermal shutdown features, making it highly reliable and essentially indestructible under normal operating conditions, provided adequate heat sinking is used.
This regulator is suitable for applications where noise elimination and distribution problems associated with single-point regulation need to be addressed. It can also be used with power pass elements to create high-current voltage regulators. The L79L05ACZ is supplied in a TO-92-3 package, designed for through-hole mounting.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are based on existing database information with low confidence.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fixed output voltage is -5V.
The maximum output current is 100mA.
The maximum input voltage is -30V.
The typical quiescent current is 5.5mA.

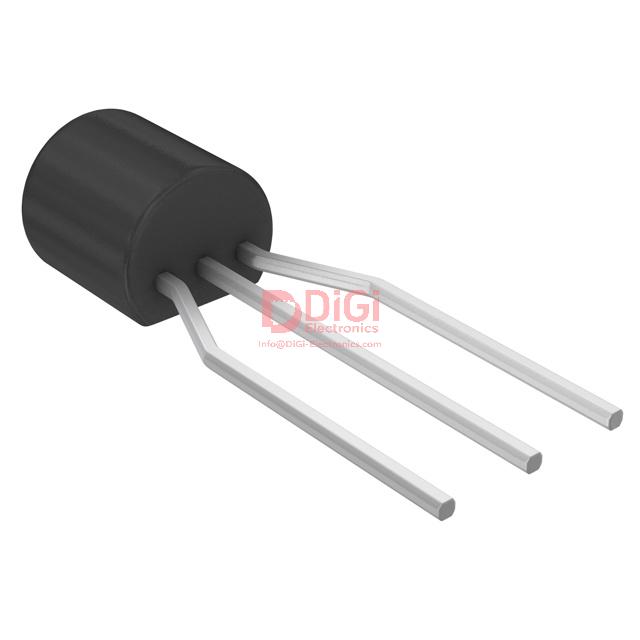

The L79L05ACZ is available in a TO-92-3 package.
The mounting type is through-hole.
