| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,200 pcs
|
4200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

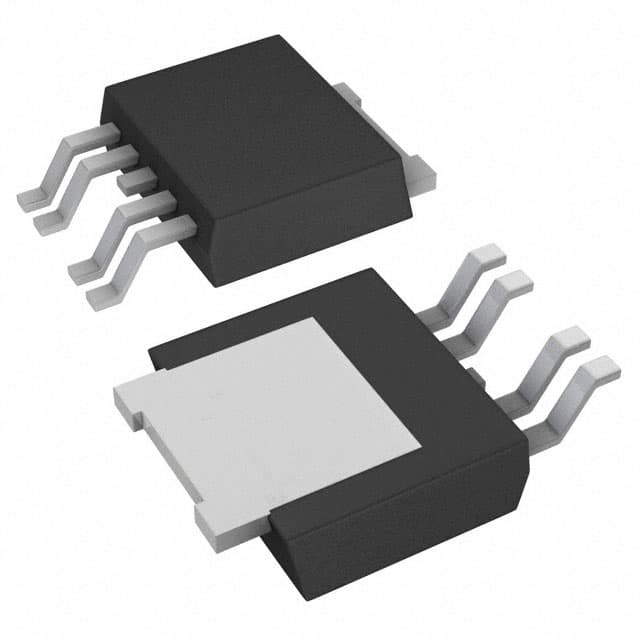

The L78LR05EL-TL-E from ON Semiconductor is a linear voltage regulator IC designed to provide a stable 5V output voltage. It can supply up to 150mA of current and operates with an input voltage up to 20V.
Key electrical characteristics include a voltage dropout of 2.2V at 40mA and a PSRR of 79dB at 120Hz. Protection features such as over-current and over-temperature shutdown are integrated for enhanced reliability. The device also includes a reset control feature.
This component is housed in a 5-SSIP package and is designed for through-hole mounting. It operates within a temperature range of -30°C to 80°C. The L78LR05EL-TL-E is RoHS3 compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The L78LR05EL-TL-E provides a fixed 5V output voltage.
The L78LR05EL-TL-E can supply a maximum output current of 150mA.
This component is supplied in a 5-SSIP package.
The L78LR05EL-TL-E is designed for Through Hole mounting.
The operating temperature range is from -30°C to 80°C.
Yes, the L78LR05EL-TL-E includes over-current protection.
