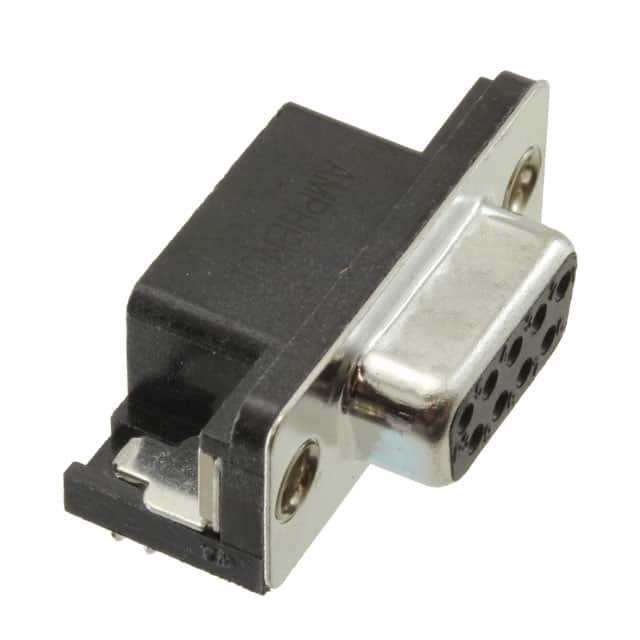

The L77SDE09SA4CH4R is a D-Sub receptacle connector from Amphenol ICC, featuring 9 positions arranged in 2 rows of female sockets. It is designed for through-hole mounting with a right-angle orientation, making it suitable for compact PCB layouts where space is limited.
This connector uses solder termination for secure connections and is equipped with gold-plated contacts that provide excellent corrosion resistance and reliable signal integrity. The shell is made of steel with a tin-plated finish, and the flange includes a board-side 4-40 thread for mounting. An integrated board lock feature ensures the connector stays firmly attached to the PCB during assembly and use.
Electrically, each contact is rated for 5A, sufficient for many signal and low-power applications. The insulator material has a flammability rating of UL94 V-0, offering a degree of fire resistance. The backset spacing of 0.318 inches (8.08mm) provides clearance for right-angle mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.81 | $1.81 |
| 10+ | $1.55 | $1.55 |
| 100+ | $1.51 | $1.51 |
| 180+ | $1.19 | $1.19 |
| 540+ | $1.16 | $1.16 |
| 1,080+ | $1.10 | $1.10 |
| 2,520+ | $1.04 | $1.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 9 positions arranged in 2 rows.
Each contact is rated for 5A.
Through hole, right angle mounting.
Gold-plated contacts with flash thickness.
Steel shell with tin plating.
Yes, it includes a board lock for secure PCB retention.
UL94 V-0 rating.
