| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

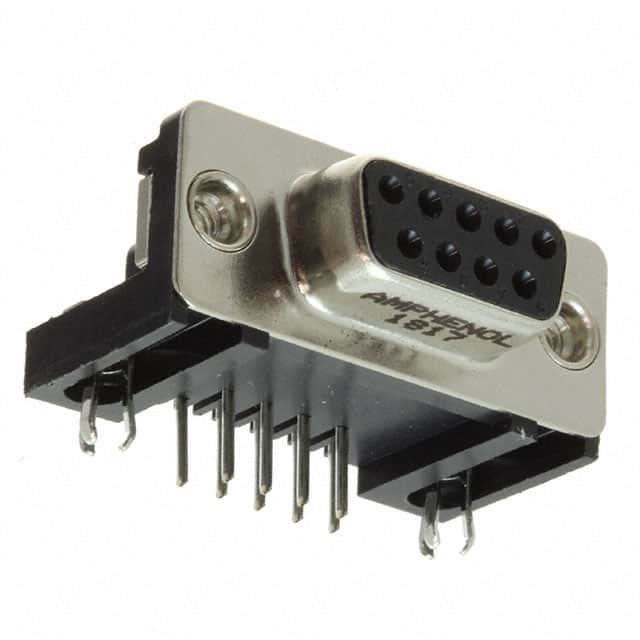

The Amphenol ICC L77SDE09S1ACH4R is a 9-position D-Sub receptacle connector featuring female socket contacts. It is designed for through-hole, right-angle mounting with solder termination, making it suitable for PCB applications where space-saving orientation is required.
The connector offers gold flash contact finish for reliable signal transmission, with a current rating of 5 A per contact. The shell is steel with tin plating, and the insulator is rated UL94 V-0 for flammability resistance. A board lock feature is included for secure attachment to the PCB, and the flange accommodates 4-40 board-side hardware.
This receptacle uses the DE (E) shell size, with a backset spacing of 0.406 inches (10.30 mm). It is intended for signal applications and general-purpose interface connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.29 | $2.29 |
| 25+ | $2.19 | $2.19 |
| 100+ | $2.05 | $2.05 |
| 180+ | $1.84 | $1.84 |
| 540+ | $1.70 | $1.70 |
| 1,080+ | $1.45 | $1.45 |
| 2,520+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a D-Sub receptacle with 9 female socket positions arranged in 2 rows.
It is a through-hole, right-angle mount connector with solder termination.
Each contact is rated for 5 A.
The material flammability rating is UL94 V-0.
The shell is steel with tin plating.
