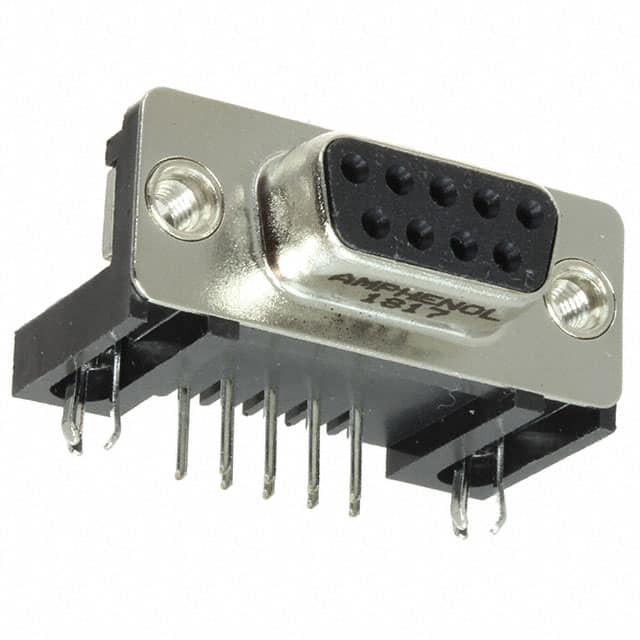

The L77SDE09S1ACH3R is a 9-position D-Sub receptacle from Amphenol ICC. It features female socket contacts arranged in 2 rows, with a DE-E shell size. The connector is designed for through-hole right-angle mounting and uses solder termination.
Electrical rating supports 5 A current. Contacts are gold flash plated for reliable signal transmission. The steel shell is tin plated, and a board lock feature aids secure attachment during assembly. The insulator material has a UL94 V-0 flammability rating.
This right-angle connector is suitable for dense PCB layouts where space constraints apply. The backset spacing is 0.406 inches (10.30 mm). A board-side M3 flange is provided for additional mounting stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.33 | $2.33 |
| 10+ | $1.99 | $1.99 |
| 25+ | $1.77 | $1.77 |
| 100+ | $1.62 | $1.62 |
| 180+ | $1.53 | $1.53 |
| 540+ | $1.49 | $1.49 |
| 1,080+ | $1.41 | $1.41 |
| 2,520+ | $1.38 | $1.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions arranged in 2 rows.
Through Hole, Right Angle with solder termination.
5 A per contact.
Shell size 1 (DE, E).
Gold flash.
