| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Industrial Grade | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

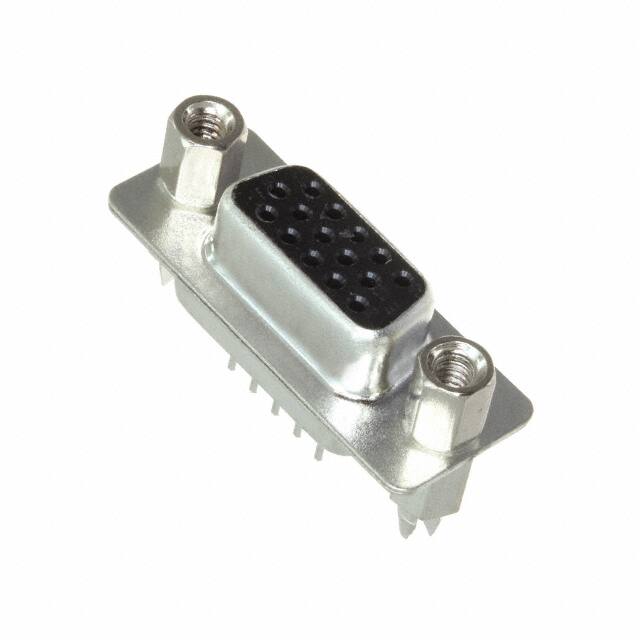

The L77HDEH15SOL2RM8 is a high density D-Sub receptacle connector manufactured by Amphenol ICC. It features 15 positions arranged in 3 rows, with female socket contacts. The connector uses a through-hole mounting type and solder termination, making it suitable for vertical orientation on PCBs. The contacts are signal type with gold flash finish, ensuring reliable conductivity. The current rating is 3 A per contact. The shell is made of steel with tin plating, and the shell size is 1 (DE, E) high density. The connector includes a board lock feature for secure attachment to the PCB. The flange feature includes board side (4-40) and mating side female screwlock (4-40). The material flammability rating is UL94 V-0, and the connector is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $2.00 | $2.00 |
| 25+ | $1.83 | $1.83 |
| 100+ | $1.77 | $1.77 |
| 180+ | $1.65 | $1.65 |
| 540+ | $1.60 | $1.60 |
| 1,080+ | $1.44 | $1.44 |
| 2,520+ | $1.41 | $1.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 15 positions.
The current rating is 3 A per contact.
The mounting type is through hole.
There are 3 rows.
It uses solder termination.
The contact finish is gold flash.
The shell is steel with tin plating.
