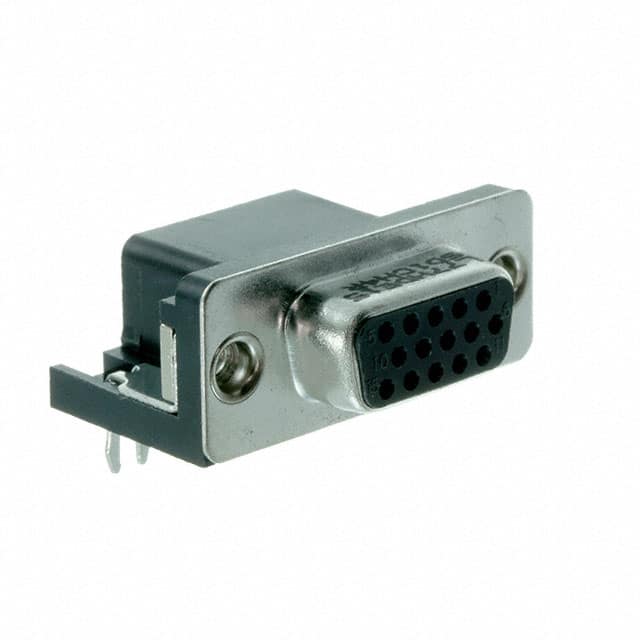

The L77HDE15SD1CH4R is a D-Sub high density receptacle manufactured by Amphenol ICC. It features 15 female socket contacts arranged in 3 rows with a DE high density shell size. This connector is designed for signal applications and offers a current rating of 3A per contact.
The receptacle uses right angle through hole termination with solder connection, making it suitable for perpendicular mounting on PCBs. It includes board locks and grounding tabs for secure attachment and enhanced EMI performance. The shell is made of steel with tin plating, and the contact finish is gold flash.
Additional specifications include a backset spacing of 0.350 inches (8.89mm) and a flange feature with board side (4-40) threads. The insulator material meets UL94 V-0 flammability rating.
