| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

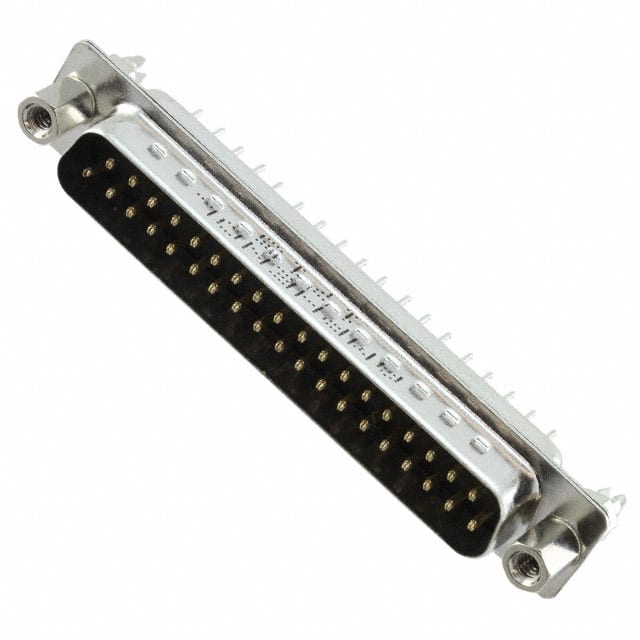

The Amphenol ICC L717SDCH37POL2RM8 is a D-Sub connector assembly designed for reliable signal interconnections in electronic systems. This plug connector features 37 male pin contacts arranged in 2 rows, with a shell size of 4 (DC, C). The connector is through hole mounted and terminated via solder, making it suitable for vertical PCB mounting.
Electrical performance includes a current rating of 5A per contact. The contacts are finished with gold flash for reliable conductivity and corrosion resistance. The shell is constructed from steel with a tin plating, providing durability and EMI shielding. The insulator material carries a UL94 V-0 flammability rating for safety compliance.
Mechanical features include board locks and grounding indents for secure attachment and improved grounding. The flange includes board side (4-40) and mating side female screwlock (4-40) threads for robust mating with standard D-Sub receptacles. This connector is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.00 | $4.00 |
| 10+ | $3.64 | $3.64 |
| 25+ | $3.45 | $3.45 |
| 120+ | $3.21 | $3.21 |
| 240+ | $2.80 | $2.80 |
| 600+ | $2.46 | $2.46 |
| 1,080+ | $2.27 | $2.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 37 positions arranged in 2 rows.
The current rating is 5A per contact.
It uses through hole mounting with solder termination.
The shell is steel with tin plating.
The contacts have a gold flash finish.
The material has a UL94 V-0 flammability rating.
