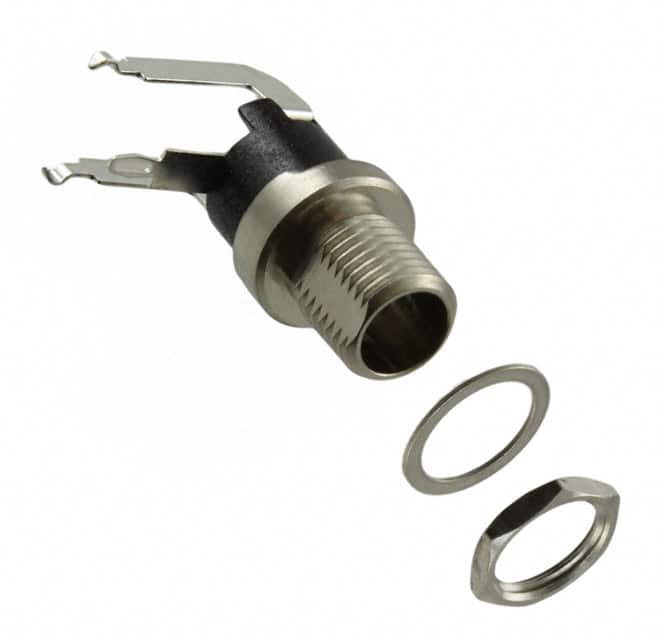

The Conxall/Switchcraft L712RA is a panel mount power jack connector designed for DC power applications. It features a 2.50mm inner diameter (ID) center pin and a 5.50mm outer diameter (OD) sleeve, with an actual OD of 5.80mm. The connector is rated for 5A continuous current at 48VDC, making it suitable for low-voltage power distribution.
This jack uses a right-angle through-hole solder termination for reliable PCB attachment. It mounts through a panel with a bulkhead front side nut and includes mounting hardware such as a hex nut and flat washer. The recommended mounting torque is 8-10 lb-in. The connector has a threaded bushing with 5/16-32 NEF 2A threads for secure panel mounting.
The L712RA features a single internal switch that is normally closed, enabling power detection when a plug is inserted. The housing and hex nut are copper alloy with nickel plating, while the insulator housing is thermoplastic and terminal insulators are phenolic. The center pin and terminals are copper alloy with silver plating for good conductivity and corrosion resistance.
This power jack is RoHS3 compliant as verified from the manufacturer datasheet. It is unshielded and includes thread lock for vibration resistance. The compact design and right-angle orientation make it suitable for space-constrained applications where panel-mounted power entry is needed.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.04 | $6.04 |
| 10+ | $5.52 | $5.52 |
| 20+ | $5.14 | $5.14 |
| 50+ | $5.05 | $5.05 |
| 100+ | $4.54 | $4.54 |
| 200+ | $4.31 | $4.31 |
| 500+ | $4.19 | $4.19 |
| 1,000+ | $4.09 | $4.09 |
| 2,000+ | $3.83 | $3.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The L712RA is rated for 5A continuous current.
The voltage rating is 48VDC.
The L712RA supports panel mount with a bulkhead front side nut, and the terminals are through-hole right-angle solder.
The industry recognized mating diameter is 2.50mm ID (0.098") and 5.50mm OD (0.217"), with an actual OD of 5.80mm (0.228").
Yes, it has a single internal switch that is normally closed.
