| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

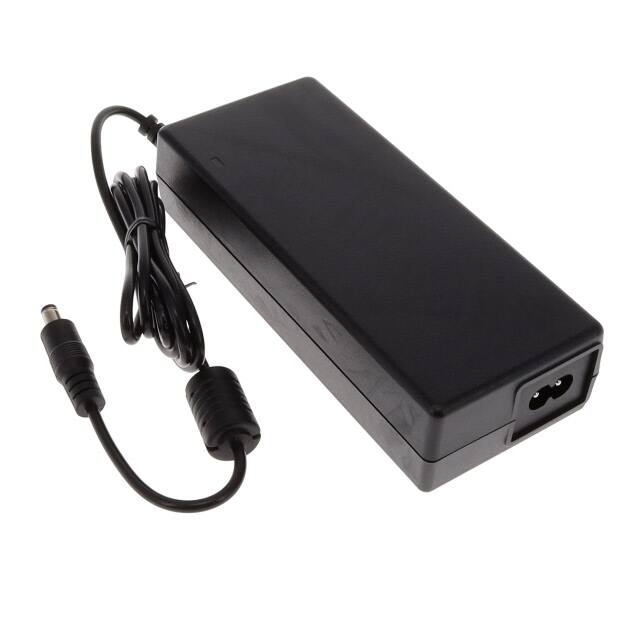

The Tri-Mag, LLC L6R90DM-480-C8 is a versatile 90W AC/DC desktop power supply specifically designed for medical applications. It operates with a universal input voltage range of 90-264Vac and a frequency of 47-63Hz, making it suitable for international use.
This power supply delivers a stable 48Vdc output at 1.88A, with a power rating of 90W. It boasts a DOE Level VI efficiency rating, ensuring energy savings and reduced heat generation. Key electrical specifications include ±1% line regulation and ±5% load regulation, with ripple and noise kept to a maximum of 2% Vp-p.
Designed for safety and reliability, the L6R90DM-480-C8 complies with ANSI/AAMI/IEC/EN ES60601-1:2012 standards and offers 2xMOPP means of protection. It features auto-recovery for overvoltage, overload, and short circuit protection. The unit has a compact desktop form factor (Class II) with dimensions of 150.9mm x 64.0mm x 35.1mm.
The output connector is a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The input connection is an IEC 320-C8 type, and the power cord is sold separately. With an MTBF of 300,000 hours at 25°C, this power supply is built for demanding environments.
The L6R90DM-480-C8 provides a 48Vdc output at 1.88A.
This power supply has a power rating of 90W.
The L6R90DM-480-C8 meets the DOE Level VI efficiency rating.
The dimensions are 150.9mm in length, 64.0mm in width, and 35.1mm in height.
The operating temperature range is 0°C to 40°C.
It complies with ANSI/AAMI/IEC/EN ES60601-1:2012 and offers 2xMOPP means of protection.
