| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

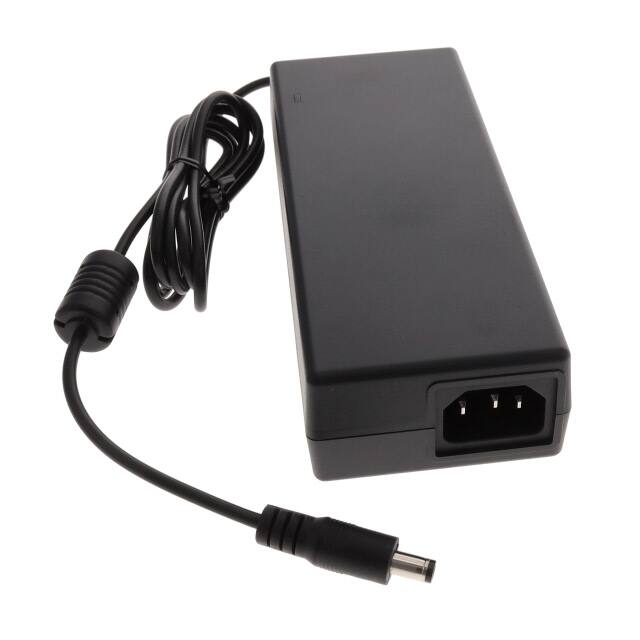

This Tri-Mag, LLC L6R90DM-480-C14 is a 90W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264Vac and operates at 47-63Hz.
The adapter provides a stable 48Vdc output at 1.88A, with a power rating of 90W. It boasts Level VI efficiency, ensuring optimal energy usage. The output connector is a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm), and the input connection is an IEC 320-C14.
Key specifications include ±1% line regulation and ±5% typical load regulation. The operating temperature range is 0°C to 40°C. This unit is approved by CE, cULus, EN, FCC, and TUV, and meets the ANSI/AAMI/IEC/EN ES60601-1:2012 standard with 2xMOPP means of protection.
The dimensions are 150.9mm x 64.0mm x 35.1mm. It is classified as Desktop (Class I) form factor with a positive center polarization.
90-264Vac.
48Vdc at 1.88A.
0°C to 40°C.
Level VI efficiency and less than 0.15W no-load power consumption.
IEC 320-C14 input and a barrel plug output with 2.5mm I.D. x 5.5mm O.D. x 9.5mm.
CE, cULus, EN, FCC, and TUV approvals, with 2xMOPP protection per 60601-1.
Box.
