| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

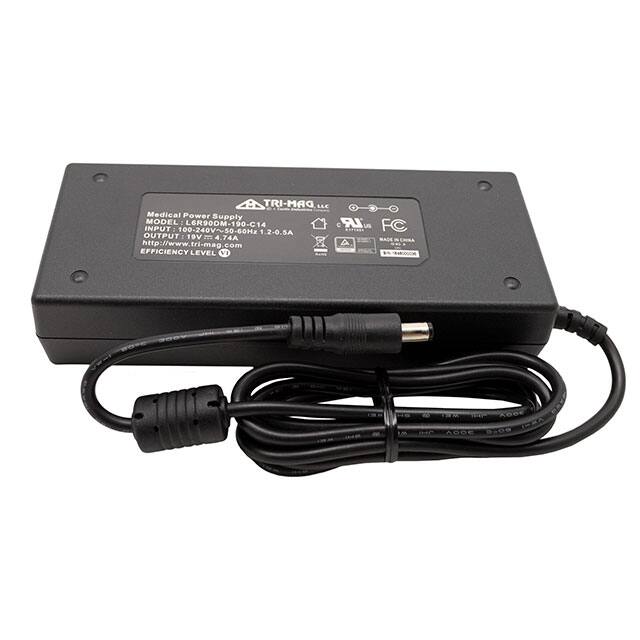

The Tri-Mag, LLC L6R90DM-190-C14 is a versatile 90W AC/DC desktop power supply specifically designed for medical applications. It provides a stable 19V output with a current rating of 4.74A, ensuring reliable performance for sensitive equipment.
This power supply meets stringent efficiency standards with its DOE Level VI rating, contributing to energy savings and reduced heat generation. It features a universal input voltage range of 90-264 Vac and a 47-63 Hz input frequency, making it suitable for international use. The input connector is an IEC 320-C14, and the output is delivered via a standard barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center.
Compliance with medical safety standards is a key feature, including approval for ANSI/AAMI/IEC/EN ES60601-1:2012. It offers multiple means of protection (2xMOPP) and includes auto-recovery for overvoltage, overload, and short circuit conditions. The compact and lightweight design makes it easy to integrate into various medical devices and systems. The operating temperature range is 0°C to 40°C, and it comes with a 2-year warranty.
The L6R90DM-190-C14 provides an output voltage of 19V and an output current of 4.74A.
This AC/DC adapter has a power rating of 90W.
The L6R90DM-190-C14 has a DOE Level VI efficiency rating.
The input voltage range is 90-264 Vac, and the input frequency range is 47-63 Hz.
This power supply uses an IEC 320-C14 input connector.
The operating temperature range is 0°C to 40°C.
Yes, this power supply is approved for medical applications and meets ANSI/AAMI/IEC/EN ES60601-1:2012 standards.
