| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Width |

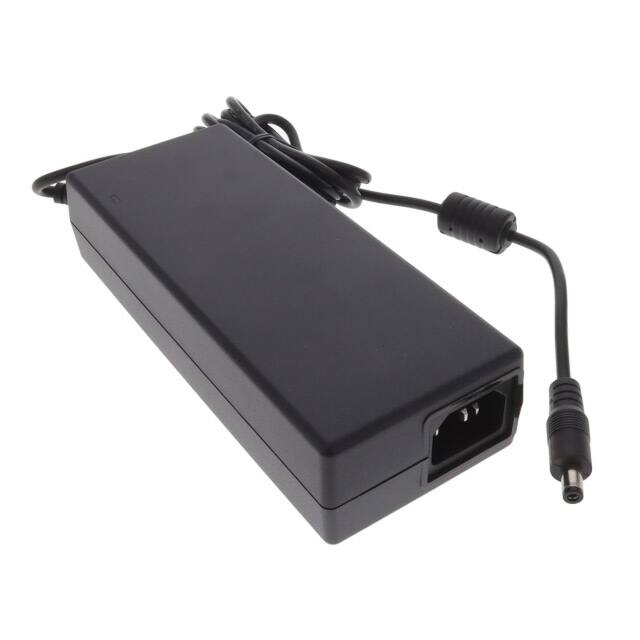

The Tri-Mag, LLC L6R90DM-180-C14 is a 90W AC/DC desktop power supply designed for medical applications. It operates with a universal input voltage range of 90-264Vac and features a stable 18V output at 5A.
This power supply boasts a DOE Level VI efficiency rating, ensuring reduced energy consumption. It complies with safety standards including ANSI/AAMI/IEC/EN ES60601-1:2012, with 2xMOPP means of protection. The unit features an IEC 60320 C14 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm).
Key electrical specifications include ±1% line regulation, ±5% load regulation, and a maximum ripple and noise of 2% Vp-p. It offers auto-recovery for overvoltage, overload, and short circuit protection. The operating temperature range is 0°C to 40°C, and it has an MTBF of 300,000 hours at 25°C.
The compact and lightweight design makes it suitable for various medical equipment and portable devices. The unit is RoHS3 compliant and has an MSL rating of 1.
The input voltage range is 90 to 264 Vac (nominal 100-240 Vac) at 47-63 Hz.
Output is 18 Vdc at 5 A, providing 90 W of power.
It meets Level VI efficiency with no-load input power below 0.15 W.
Overvoltage, overload, and short circuit protections with auto recovery.
Operating temperature is 0°C to 40°C.
Yes, it provides 2xMOPP isolation and is certified to IEC 60601-1 with approvals including CE, cULus, EN, FCC, TUV.
It is a desktop (Class I) adapter with an IEC 320-C14 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D. x 9.5mm, positive center).
