| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

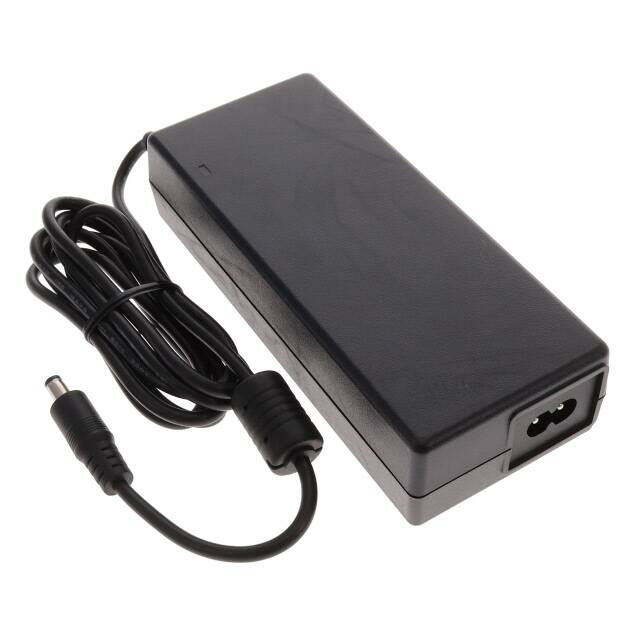

The Tri-Mag, LLC L6R90DM-150-C8 is a versatile 90W AC/DC desktop power supply specifically designed for medical applications. It operates with a universal input voltage range of 90-264Vac and a frequency of 47-63Hz, making it suitable for international use.
This power supply delivers a stable 15V output at a maximum current of 6A. It meets DOE Level VI efficiency standards and is approved to ANSI/AAMI/IEC/EN ES60601-1:2012, offering 2xMOPP means of protection. The unit features auto-recovery for overvoltage, overload, and short circuit protection.
With a compact desktop form factor (Class II), it includes an IEC 320-C8 input connector and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with a positive center. The operating temperature range is 0°C to 40°C, and it boasts an MTBF of 300,000 hours at 25°C.
Compliance includes CE, cULus, EN, FCC, and TUV approvals. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected.
The L6R90DM-150-C8 provides a +15.0V output voltage at a maximum current of 6.00A.
The power rating for this AC/DC desktop adapter is 90W.
The power supply supports a universal input voltage range of 90 to 264 Vac.
The L6R90DM-150-C8 has a DOE Level VI efficiency rating.
This power supply is approved for medical applications.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C8 input connector.
