| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

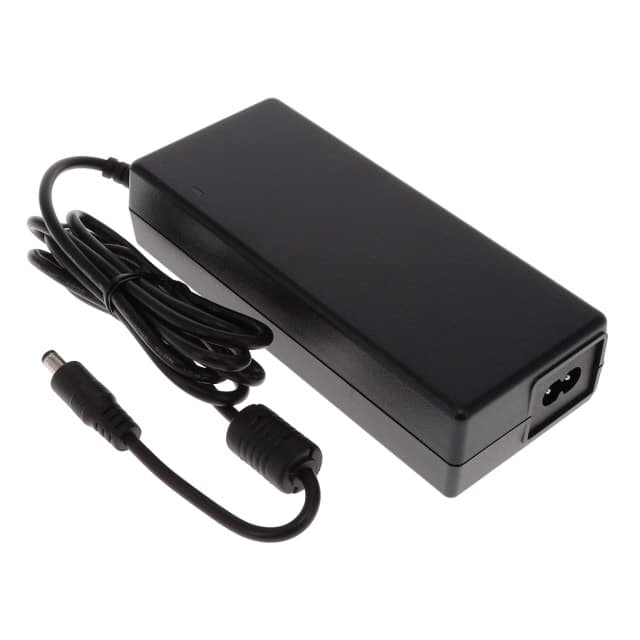

The Tri-Mag, LLC L6R90DM-120-C8 is a versatile AC/DC desktop power supply designed for medical applications. It delivers a stable 12V output at 7A, providing a total of 84W of power.
This power supply meets the stringent DOE Level VI efficiency rating, ensuring optimal energy consumption. It features a universal input voltage range of 90-264Vac and operates at frequencies between 47-63Hz. The input connection is via an IEC 320-C8 connector, and the output is delivered through a barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Designed for reliability, the L6R90DM-120-C8 operates within a temperature range of 0°C to 40°C. Its compact dimensions (150.9mm x 64.0mm x 35.1mm) make it suitable for various integration needs. The unit is approved by CE, cULus, EN, FCC, and TUV, and complies with standard 60601-1, offering 2xMOPP means of protection.
Key specifications include a line regulation of ±1% and load regulation of ±5%. The ripple and noise are kept below 2% Vp-p at full load. It also boasts a low no-load power consumption of less than 150mW.
The L6R90DM-120-C8 provides a +12.0Vdc output at 7.00A.
This adapter has a power rating of 84W.
The power supply meets the DOE Level VI efficiency rating.
The input voltage range is 90-264Vac, and the input frequency range is 47-63Hz.
It uses an IEC 320-C8 input connector.
The operating temperature range is 0°C to 40°C.
It is approved for CE, cULus, EN, FCC, TUV, and standard 60601-1 with 2xMOPP means of protection.
