| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

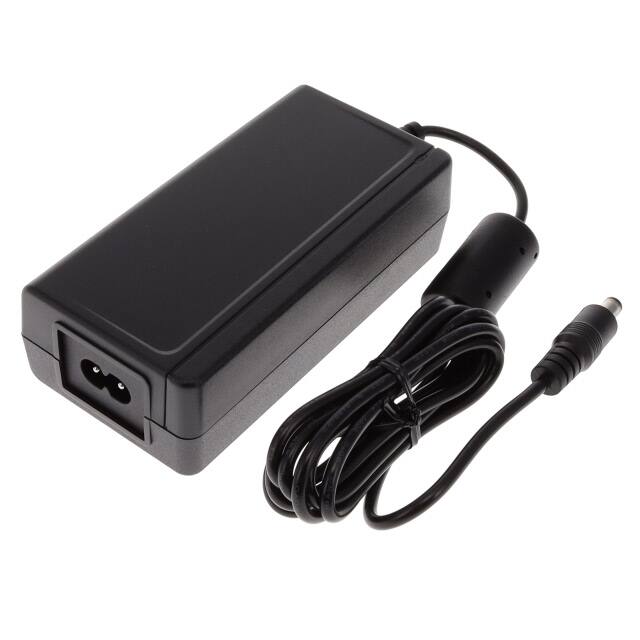

The Tri-Mag, LLC L6R65DM-240-C8 is a versatile 65W AC/DC desktop power supply unit, specifically designed for medical applications. It operates with a universal input voltage range of 90 to 264 Vac and a frequency of 47 to 63 Hz, making it suitable for international use.
The power supply delivers a stable 24V output at 2.71A, providing a total of 65W of power. It meets DOE Level VI efficiency standards and includes essential protections such as overvoltage, overload, and short circuit protection, all with auto-recovery.
Designed with a compact form factor (119.1mm x 59.9mm x 36.1mm), it features an IEC 320-C8 input connector and a barrel plug output connector. The operating temperature range is from 0°C to 40°C, and it boasts a high MTBF of 300,000 hours at 25°C.
Compliance is assured with approvals from CE, cULus, EN, FCC, and TUV, and it adheres to the Standard Number 60601-1. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The output voltage is 24V.
The maximum output current is 2.71A.
The power rating is 65W.
The input voltage range is 90 to 264 Vac.
It has a DOE Level VI efficiency rating.
The operating temperature range is 0°C to 40°C.
It complies with CE, cULus, EN, FCC, and TUV standards, specifically adhering to Standard Number 60601-1.
