| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

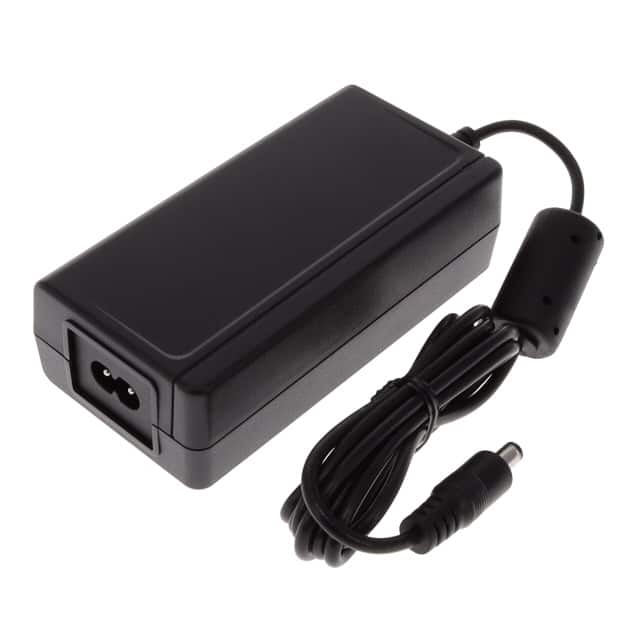

The Tri-Mag, LLC L6R65DM-190-C8 is a versatile 65W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264 Vac and a stable 19V output with a maximum current of 3.43A. The unit is compliant with DOE Level VI efficiency standards, ensuring energy savings and reduced heat generation.
This power supply adheres to stringent safety standards, including ANSI/AAMI/IEC/EN ES60601-1:2012, and offers 2xMOPP means of protection, making it suitable for medical equipment. It includes an IEC 60320 C8 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). The compact dimensions of 119.1mm x 59.9mm x 36.1mm make it ideal for space-constrained designs.
Key electrical specifications include a line regulation of ±1% and load regulation of ±5% typical. The ripple and noise are kept to a maximum of 2% Vp-p at full load. It also features auto-recovery for overvoltage, overload, and short circuit protection. The operating temperature range is from 0°C to 40°C.
The L6R65DM-190-C8 has an output voltage of 19V and a maximum output current of 3.43A.
The input voltage range for the L6R65DM-190-C8 is 90 to 264 Vac.
The L6R65DM-190-C8 has a DOE Level VI efficiency rating.
The L6R65DM-190-C8 is approved for medical applications.
The operating temperature range for the L6R65DM-190-C8 is 0°C to 40°C.
The L6R65DM-190-C8 is RoHS3 Compliant.
