| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

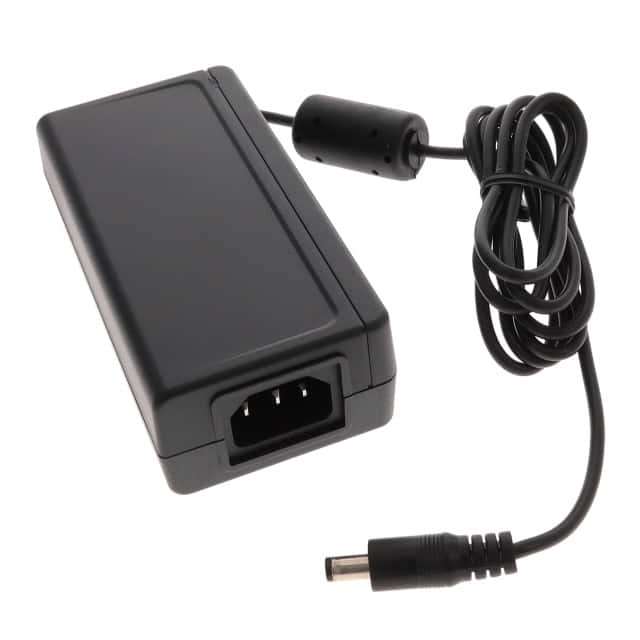

The Tri-Mag, LLC L6R65DM-190-C14 is a 65W AC/DC desktop power supply designed for medical applications. It features a universal input voltage range of 90-264 VAC and operates at 47-63 Hz.
This adapter provides a stable 19V output at 3.43A, with line regulation of ±1% and load regulation of ±5% typical. It boasts a DOE Level VI efficiency rating and a low no-load power consumption of less than 0.15W. The unit is approved to ANSI/AAMI/IEC/EN ES60601-1:2012 standards, with 2xMOPP means of protection.
With compact dimensions of 119.1mm x 59.9mm x 36.1mm, it utilizes an IEC 60320 C14 input connector and a standard barrel plug output. The operating temperature range is 0°C to 40°C. It also includes overvoltage, overload, and short circuit protection with auto recovery.
Key specifications include a 2-year warranty, MTBF of 300,000 hours, and compliance with various safety agencies like CE, cULus, EN, FCC, and TUV.
The L6R65DM-190-C14 provides a 19V output at a maximum current of 3.43A.
This adapter has a power rating of 65W.
The L6R65DM-190-C14 accepts a universal input voltage range of 90 to 264 VAC.
Yes, it meets the DOE Level VI efficiency rating.
It uses an IEC 60320 C14 input connector.
The dimensions are 119.1mm x 59.9mm x 36.1mm.
The operating temperature range is 0°C to 40°C.
