| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

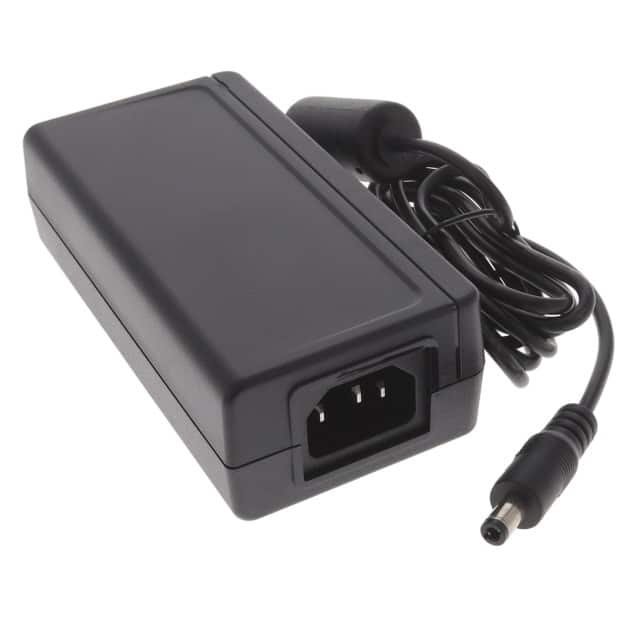

The Tri-Mag, LLC L6R65DM-180-C14 is a 65W AC/DC desktop power adapter designed for medical applications. It features a universal input voltage range of 90-264Vac and operates at 47-63Hz.
This power supply delivers a stable 18Vdc output at 3.62A, with a power rating of 65W. It boasts a DOE Level VI efficiency rating, ensuring energy savings. Key electrical specifications include ±1% line regulation and ±5% typical load regulation, with a maximum ripple and noise of 2% Vp-p.
Designed for reliability, the L6R65DM-180-C14 includes auto-recovery for overvoltage, overload, and short circuit protection. It operates within a temperature range of 0°C to 40°C and has a MTBF of 300,000 hours at 25°C.
The adapter uses an IEC 320-C14 input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). Its compact desktop form factor measures 119.1mm x 59.9mm x 36.1mm. It is approved by CE, cULus, EN, FCC, and TUV.
90-264Vac, with 100-240Vac nominal.
18Vdc at 3.62A, 65W.
0°C to 40°C.
Desktop (Class I) adapter with IEC 320-C14 input connector and 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel output connector.
Auto-recovery overvoltage, overload, and short circuit protection.
Level VI.
150mW maximum.
